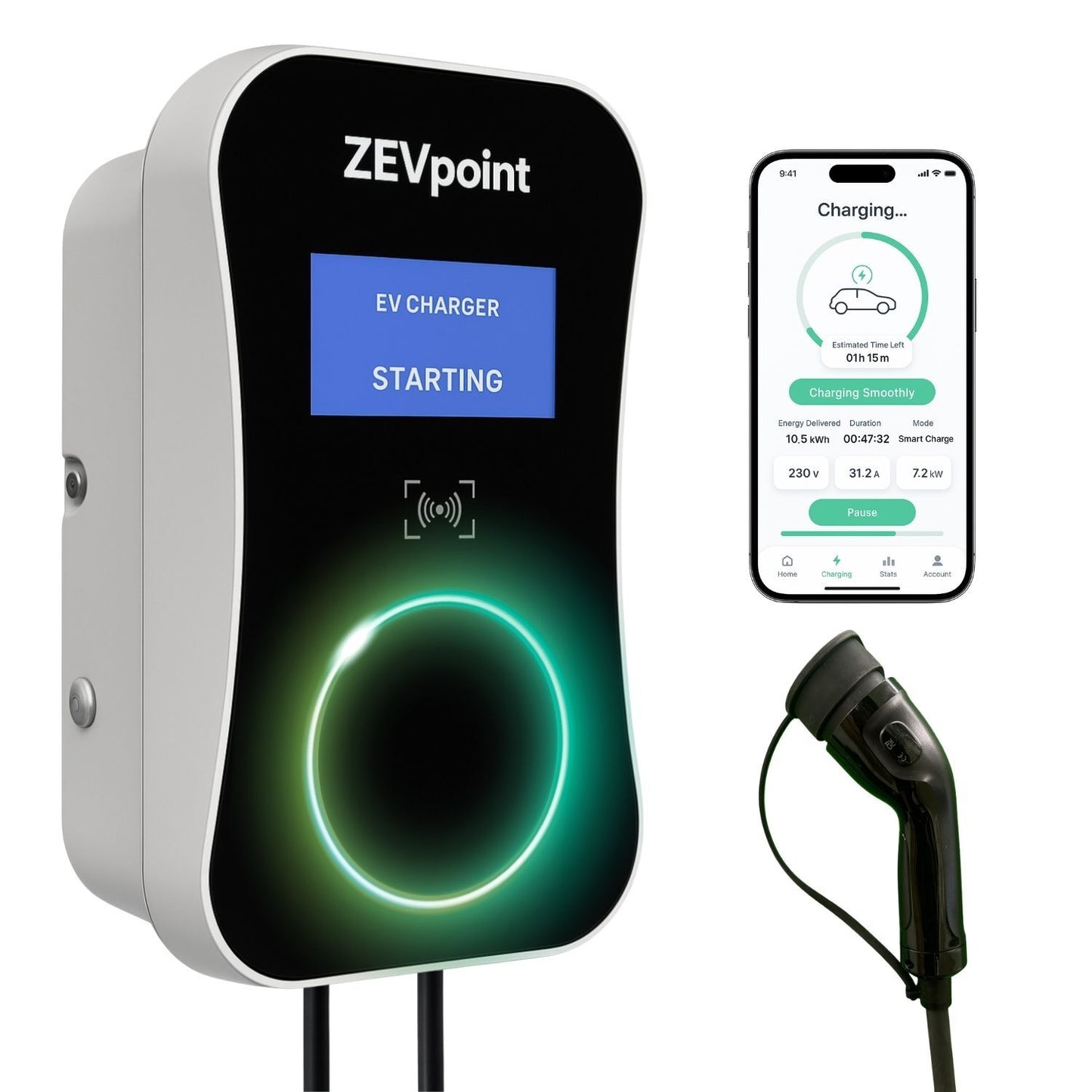

Duos 22 kW wall EV charger (OCPP)

A 22 kW smart wall EV charger that switches between home and commercial use. RFID and app control, OCPP 1.6 and an emergency stop.

Duos 22 is a 22 kW wall-mounted EV charger made by Zevpoint with one switch between home and commercial use: home mode charges your own car, commercial mode connects to a charging network over OCPP 1.6 to meter and bill each session. Type 2 connector, RFID and the Zevpoint app. Price Rs. 44,999.00, incl. GST. Ships within 24 hours.

Home or commercial mode
OCPP 1.6
RFID · App
Emergency stop

A 22 kW three-phase wall charger that switches between charging your own car and metering shared or paid charging over OCPP.

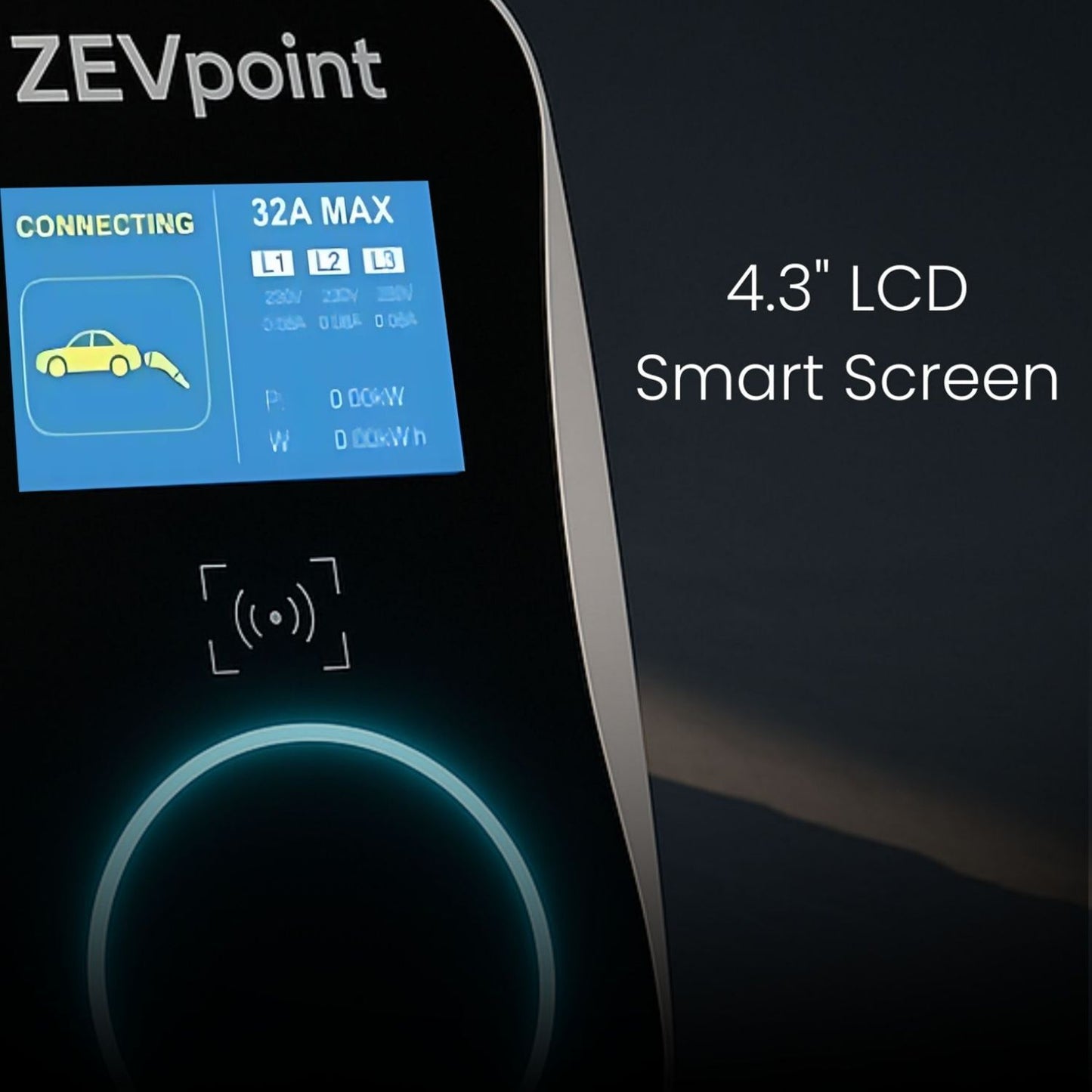

4.3-inch display: Live session data, right on the unit.
RFID card start: Tap the card and charging begins.

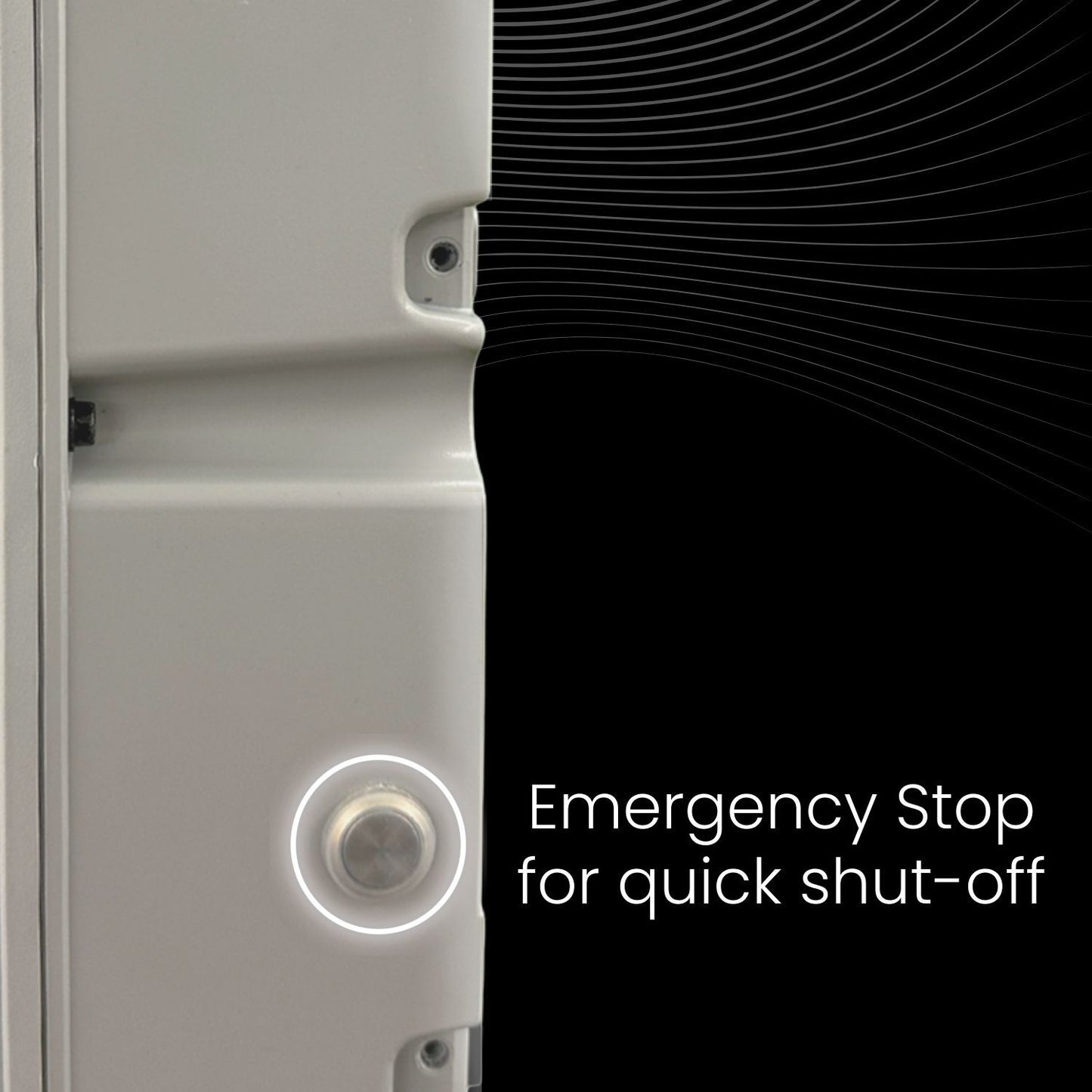

Emergency stop button: One press cuts the power instantly.
TPU cable, 5 m: Type 2, comes fitted to the charger.
Home mode: Charge your own car with the Zevpoint Home app.
Commercial mode: Joins a network over OCPP 1.6 to meter and bill.
Dynamic load balancing: Shares power with the rest of your home.
Plan and track: Schedule charging and see every session.
Built-in protections: Overload, short-circuit, leakage, earthing and over-temperature.
Charge-status detection: Checks the connection while it charges.
IP65 rated: Dust and water resistant, indoors or out.
CE · FCC certified: Type-tested and certified.

Two modes

Home mode — Your own car, with the Zevpoint app
Commercial mode — OCPP 1.6 · meter and bill each session

Which one is right for you?

Duos 7.5 (7.5 kW): A home or small site, on a single- or three-phase supply.
Duos 11 (11 kW): A three-phase home or site with cars that charge at 11 kW.
Duos 22 (22 kW): A three-phase site with cars that charge at 11 or 22 kW.

Cars that charge at full speed on Duos 22

Audi e-tron, Audi e-tron GT, Audi e-tron Sportback, Audi Q8 e-tron, Audi Q8 Sportback e-tron, Audi RS e-tron GT, BMW i4, BMW i5, BMW i7, BMW iX, BMW iX1, BMW iX1 LWB, BYD Sealion 7, Hyundai Creta Electric, Hyundai Ioniq 5, Jaguar I-PACE, Kia Carens Clavis EV (42 kWh), Kia Carens Clavis EV (51.4 kWh), Kia EV6, Kia EV9, Kia Syros EV, Lotus Eletre, Lotus Emeya, Mahindra BE 6, Mahindra XEV 9e, Mahindra XEV 9S, Mercedes-Benz CLA Electric, Mercedes-Benz EQA, Mercedes-Benz EQB, Mercedes-Benz EQE SUV, Mercedes-Benz EQS, Mercedes-Benz EQS SUV, Mercedes-Benz G 580 with EQ Technology, Mercedes-Benz Maybach EQS 680 SUV, MG Cyberster, MG M9, MINI Cooper SE, MINI Countryman Electric, Porsche Cayenne Electric, Porsche Macan Electric, Porsche Taycan, Rolls-Royce Spectre, Skoda Elroq, Tata Avinya, Tesla Model Y, Toyota Urban Cruiser EV, Volvo EC40, Volvo EX30, Volvo EX40, Volvo XC40 Recharge.

Duos 22 specifications

Output: Up to 22 kW, three phase
Supply: Three phase, 380–415 V
Max output current: 32 A per phase
Adjustable current: 8 A to 32 A
Efficiency: Above 96%
Protection rating: IP65, dust and water resistant
Safety: Emergency stop switch, overload, short-circuit, leakage, earthing and over-temperature protection
Certifications: CE, FCC
Compliance: ISO 15118, IEC 61851
Plug: Wired to a dedicated circuit (wall-mounted)
Car connector: Type 2 (IEC 62196-2)
Cable length: 5 m TPU cable
Operating modes: Home or commercial, one switch (OCPP 1.6)
Load balancing: Dynamic load balancing
Control: Zevpoint Home App, RFID, OCPP 1.6
Display: 4.3-inch LED display with live session data
Housing: High-grade ABS
Operating temperature: -35°C to +60°C
Unit size: 480 x 400 x 160 mm
Weight: 6.5 kg
Packed size: 500 x 400 x 160 mm
In the box: Charger unit, wall bracket, user manual
Warranty: 5 years on cable and enclosure, 2 years on all other components

with a single-phase car, Duos 22 charges at up to 7.5 kW (most 7.2 kW cars).

What your site needs for Duos 22

Power point: Dedicated three-phase circuit — Wired straight to the charger from your distribution board.
Supply cable: 6 sq mm, 5-core copper — XLPE / HR FRLS, up to 58 m. Use 10 sq mm up to 98 m; longer runs need a site survey.
Circuit breaker: 40 A four-pole MCB — A breaker of its own, so the charger never shares a circuit.
Surge protection: Type 2 SPD, 3P+N — 275 V, 20 kA nominal / 40 kA max, fitted at the distribution board. Required.
Earthing: Proper earthing — Required for every install. Our electrician checks it before switching on.
Voltage stabiliser: Only if your supply fluctuates — If the voltage drops or spikes often, add a suitable stabiliser.

Will Duos 22 work with my car, and how fast will it charge?

It works with any electric car that has a Type 2 socket, which covers almost every electric car sold in India. Your car decides the top speed: a car that accepts 7 kW charges at 7 kW even on a bigger charger. The charging-speed tool on this page shows the time for your model.

Can my home’s electricity connection take it?

Check two things on your electricity bill: your sanctioned load, and whether the supply is single phase or three phase. This page lists what Duos 22 needs under “What your site needs”. If your load is short, your electricity company can increase it; the application is made in your name and we guide you through it.

What wiring, breaker and earthing does it need?

A dedicated circuit of its own, a breaker, a surge protection device and proper earthing. The cable size, breaker rating and longest cable run for Duos 22 are listed under “What your site needs” on this page. Longer runs need a site survey.

Is it safe outdoors and in the rain?

Yes. The charger is rated for protection against dust and water (the rating is in the specifications on this page), so it can be used outdoors.

What happens after a power cut?

When the charger is set to Quick charge or Plug & charge mode, charging resumes on its own once the power is back.

Who installs it, and what if I live in a society?

We deliver, install and service in every city across India. Installation covers mounting the charger, fitting its breaker and surge protection device, testing and commissioning, with cable-laying labour for up to 10 metres.

If the charger or its cable passes through common areas, you will need permission (NOC) from your society before the visit.

What if it stops working?

Raise a service request or write to support@zevpoint.com. We first try to fix it remotely over a call or video, which is usually the quickest. If it needs repair, we arrange a free pickup from your address and deliver the repaired or replacement charger back. Technical support is free for the life of the charger.

Does the app need a particular Wi-Fi?

The Zevpoint Home app connects the charger over a 2.4 GHz Wi-Fi network. If your router is 5 GHz only, a 2.4 GHz mobile hotspot works as well.

Shipping, Cash on Delivery and GST invoice

Orders are processed and shipped within 24 hours, and tracking details are emailed to you.

Cash on Delivery is available across India. We take a small confirmation amount when you order and collect the balance at delivery. Call +91 9779750538 to arrange it.

GST invoice: email your GST details to support@zevpoint.com after ordering.

What does the warranty cover?

Cables: up to 5 years, covering defects but not physical damage to connectors. Housing and enclosure: 5 years. Other components: 2 years against manufacturing defects. Accessories: not covered.

The warranty doesn't cover improper use, power surges, supply-side electrical faults, burnouts or unauthorised modifications. Full warranty terms

Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.

Can I return it?

Within 7 days of receipt, unused and in the original packaging with all accessories and documentation. Proof of purchase is required. Start a return

Not returnable: Cash on Delivery orders, No Cost EMI orders, bulk orders of two or more, DC chargers and EV accessories. Full return policy

Duos 22 is a wall-mounted 22 kW charger with one switch between home and commercial use. In home mode it charges your own car. In commercial mode it connects to a charging network over OCPP 1.6, so the same unit can meter and bill shared or paid charging.

It draws 32A per phase for up to 22 kW on a three-phase supply. A car that charges on single phase, as most 7.2 kW cars do, charges from it at up to 7.5 kW. An emergency stop switch sits on the unit.

Specifications

Output: Up to 22 kW
Supply: Three phase, 380-415V
Single-phase cars: Up to 7.5 kW for a car that charges on single phase (most 7.2 kW cars)
Current: Adjustable from 6A to 32A
Plug: Wired to a dedicated circuit (wall-mounted)
Car connector: Type 2 (IEC 62196-2)
Cable length: 5 m TPU cable
Control: Zevpoint Home App, RFID, OCPP 1.6
Protection rating: IP65, dust and water resistant
Safety: Emergency stop switch, overload, short-circuit, leakage, earthing and over-temperature protection
Operating temperature: -35°C to +60°C
Unit size: 480 x 400 x 160 mm
Weight: 6.5 kg
Packed size: 500 x 400 x 160 mm
In the box: Charger unit, wall bracket, user manual
Warranty: 5 years on cable and enclosure, 2 years on all other components

Installation

Power point: A dedicated three-phase circuit, wired to the charger
Cable: 6 sq mm 5-core copper cable (XLPE / HR FRLS) for a run of up to 58 m from the distribution board; 10 sq mm up to 98 m. Longer runs need a site survey.
Circuit breaker: 40A four-pole MCB
Surge protection: Type 2 SPD, three-phase (3P+N), 275 V, 20 kA nominal / 40 kA max, at the distribution board, required
Earthing: Proper earthing is required
Voltage stabiliser: If the supply voltage fluctuates often, use a suitable voltage stabiliser.
