Aveo 3.6 kW portable EV charger

Aveo 3.6 kW portable EV chargerAveo 3.6 kW portable EV charger, photo 2Aveo 3.6 kW portable EV charger, photo 3Aveo 3.6 kW portable EV charger, photo 4Aveo 3.6 kW portable EV charger, photo 5Aveo 3.6 kW portable EV charger, photo 6Aveo 3.6 kW portable EV charger, photo 7

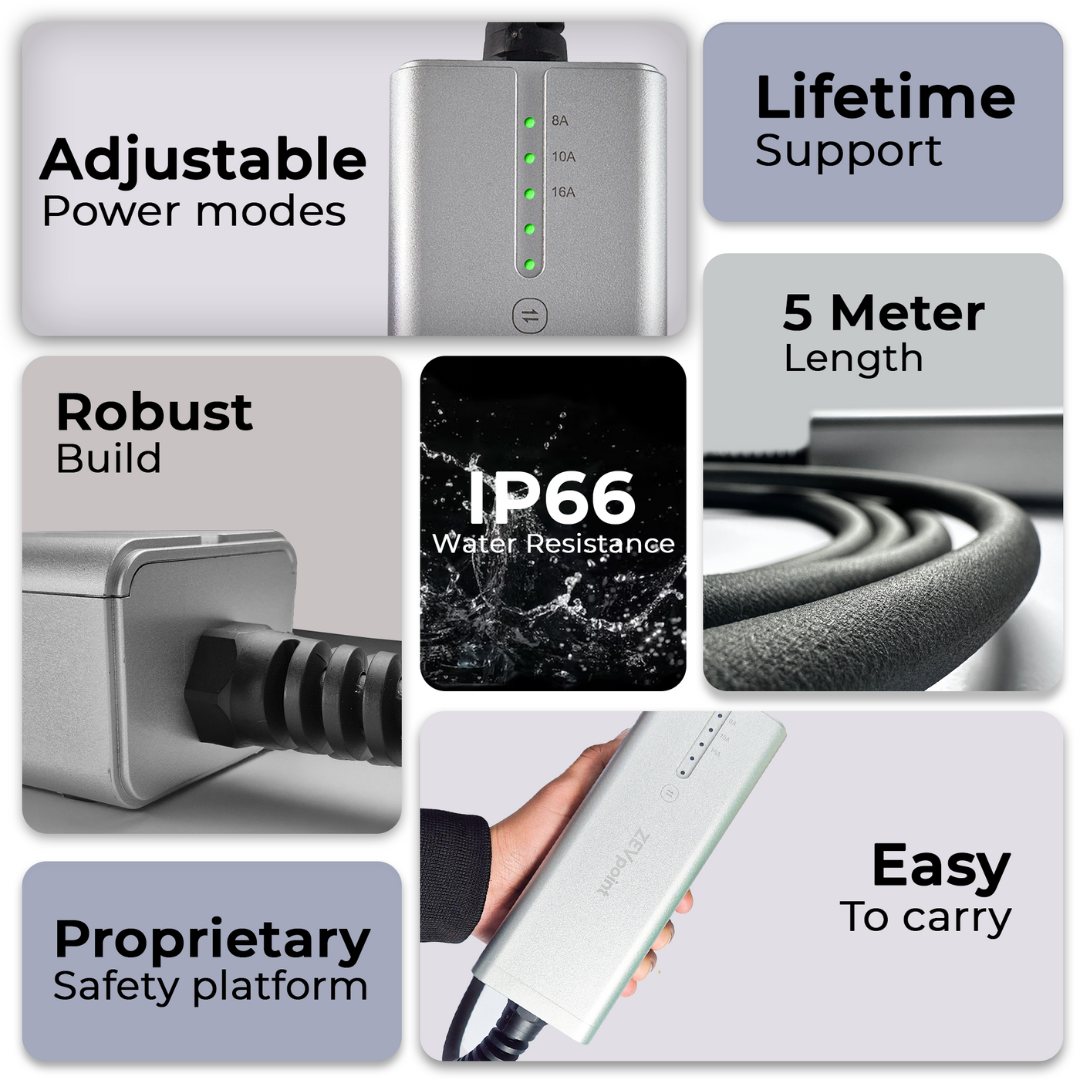

A 3.6 kW portable EV charger for any regular home socket. Plug and charge, with an 8, 10 or 16 A switch, IP66 rating and 10+ safety protections.

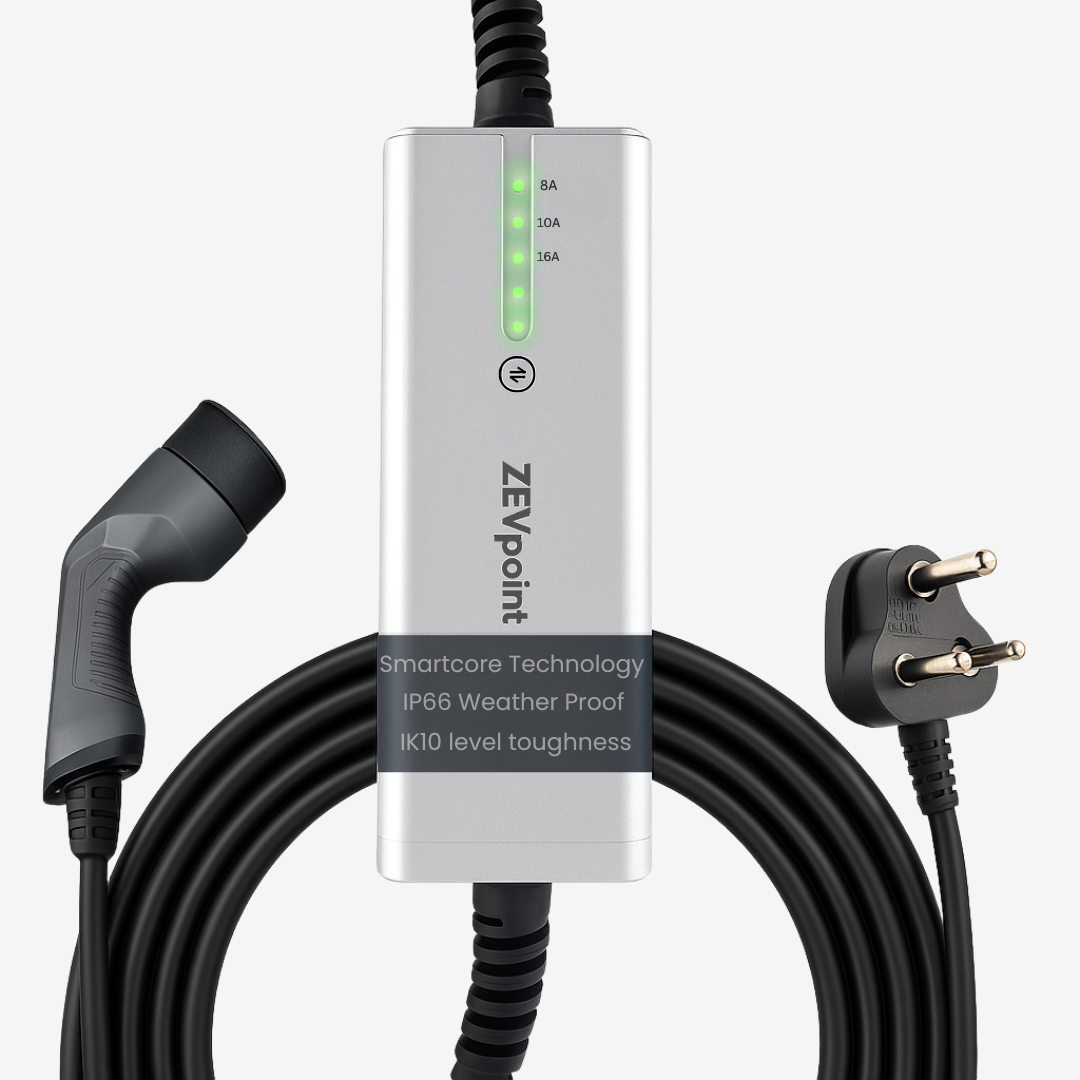

Aveo 3.6 is a 3.6 kW portable EV charger made by Zevpoint, with a Type 2 car connector. Price Rs. 13,999.00, incl. GST. Ships within 24 hours.

  • Plug and charge
  • 8 · 10 · 16 A switch
  • IP66
  • 10+ safety protections

A 3.6 kW charger that runs from an ordinary home socket. Plug it in, connect the car, and it charges.

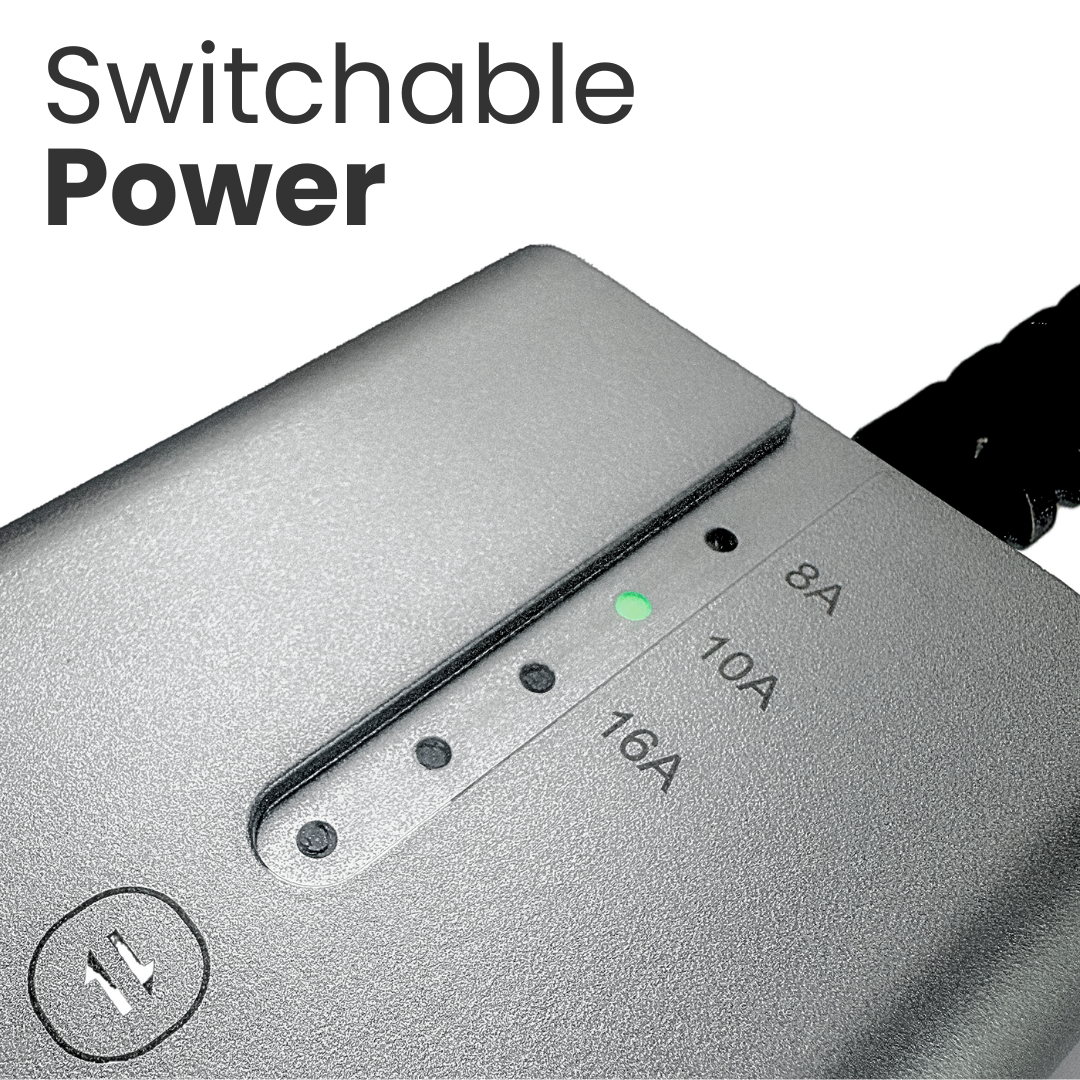

  • Current switch: Set 8 A, 10 A or 16 A on the unit.
  • 16 A home plug: Charges from an ordinary 16 A socket.
  • Type 2 connector: Fits every car with a Type 2 socket.
  • 5 m cable: Reaches most parking spots.
  • Plug in and charge: Connect the car and it starts charging.
  • Carry it anywhere: Charge wherever there is a 16 A socket.
  • Light, 2.5 kg: Easy to keep in the boot.
  • Charges on limited load: Drop to 8 A or 10 A where the supply is weak.

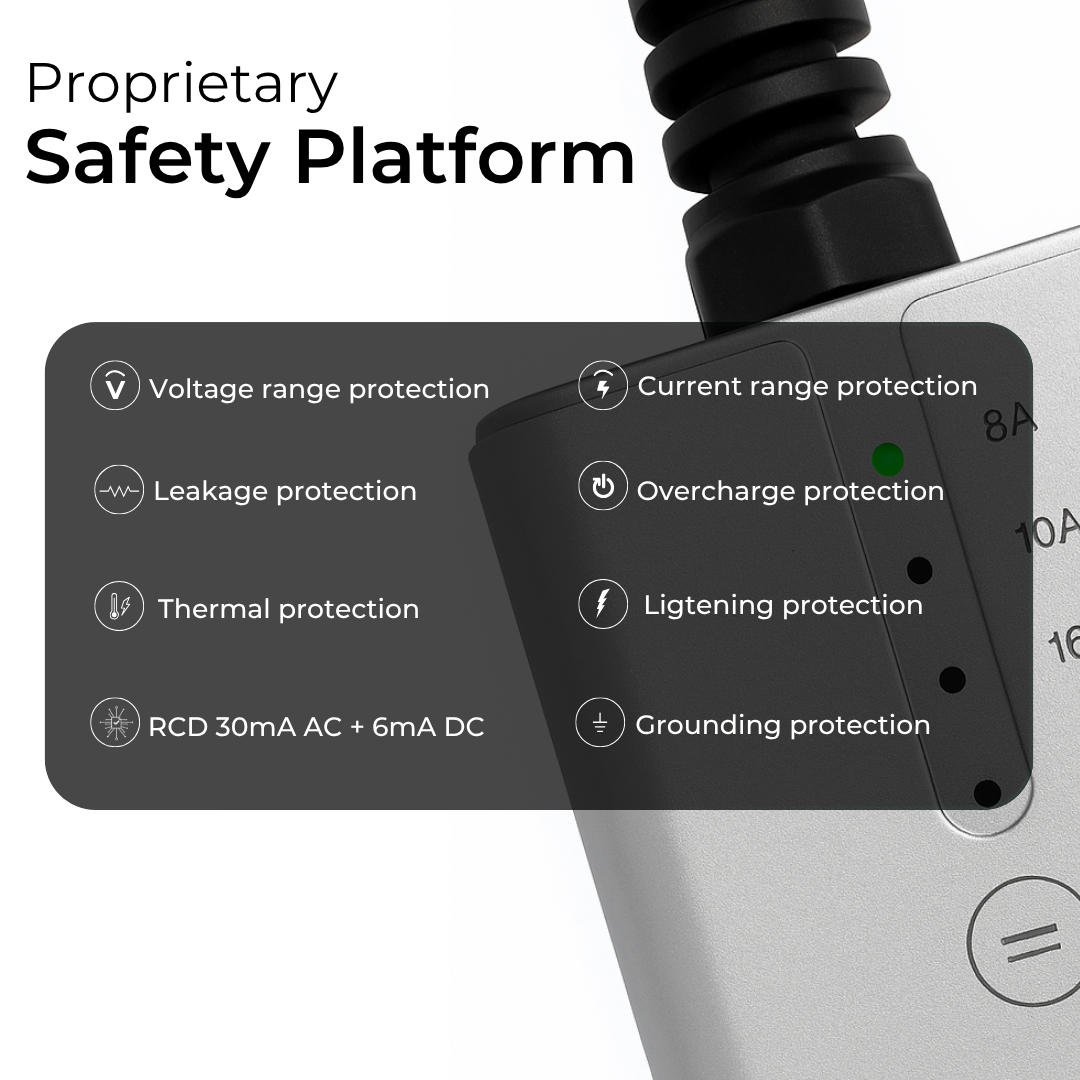

  • 10+ safety protections: Overload, short-circuit, leakage, earthing and over-temperature.
  • Auto cut-off: Stops on its own when charging is complete.

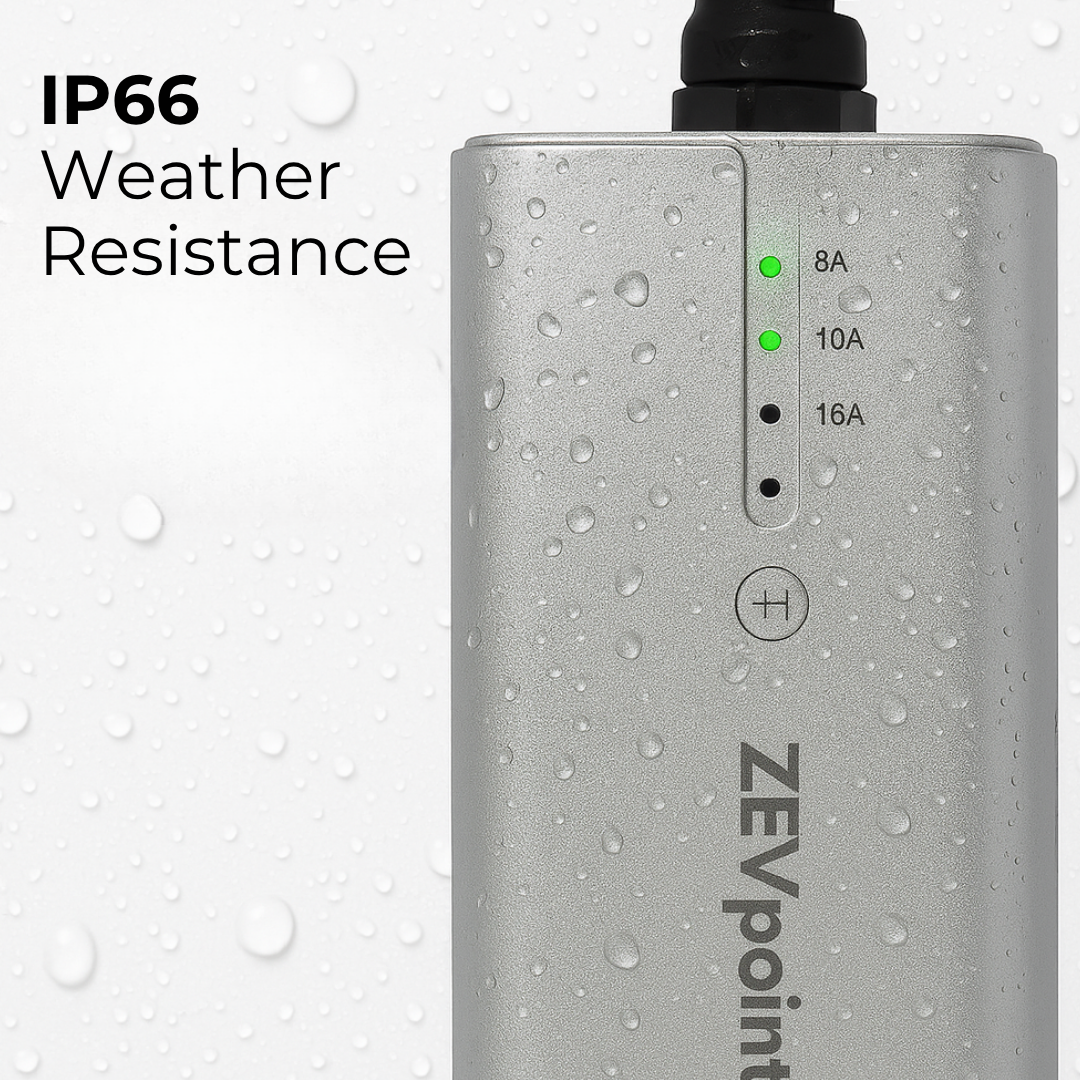

  • IP66 rated: Dust and water resistant, indoors or out.
  • Works from −30°C to 50°C: Built for hot summers and cold winters.

Cars that charge at full speed on Aveo 3.6

Citroen eC3, Citroen eC3X, Eicher Pro X, Mahindra e-Verito, Mahindra e2o, Mahindra e2o Plus, Mahindra REVAi, Mahindra XUV400 EV EC Pro, MG Comet EV, MG Hector Tomahawk PHEV, Tata Nexon EV Prime, Tata Tiago EV, Tata Tigor EV, Tata Tigor EV (pre-2023), Tata Xpres-T EV (pre-2023).

Aveo 3.6 specifications

  • Output: Up to 3.6 kW
  • Supply: Single phase, 220–240 V
  • Max output current: 16 A
  • Adjustable current: Switchable: 8 A, 10 A or 16 A
  • Protection rating: IP66, dust and water resistant
  • Safety: Auto cut-off, overload, short-circuit, leakage, earthing and over-temperature protection
  • Certifications: CE
  • Plug: 16 A 3-pin plug for an ordinary home socket
  • Car connector: Type 2 (IEC 62196-2)
  • Cable length: 5 m
  • Control: Plug and charge
  • Operating temperature: -30°C to +50°C
  • Unit size: 250 x 120 x 80 mm
  • Weight: 2.5 kg
  • Packed size: 400 x 400 x 100 mm
  • In the box: Aveo 3.6 charger, instruction manual
  • Warranty: 5 years on cable and enclosure, 2 years on all other components

What your site needs for Aveo 3.6

  • Power point: Dedicated 16 A single-phase socket — With enough connected load for the charger.
  • Supply cable: 4 sq mm, 3-core copper — XLPE / HR FRLS, up to 39 m. Use 6 sq mm up to 58 m; longer runs need a site survey.
  • Circuit breaker: 20 A double-pole MCB — A breaker of its own, so the charger never shares a circuit.
  • Surge protection: Type 2 SPD, 1P+N — 275 V, 20 kA nominal / 40 kA max, fitted at the distribution board. Required.
  • Earthing: Proper earthing — Required for every install. Our electrician checks it before switching on.
  • Voltage stabiliser: Only if your supply fluctuates — If the voltage drops or spikes often, add a suitable stabiliser.

Will Aveo 3.6 work with my car, and how fast will it charge?

It works with any electric car that has a Type 2 socket, which covers almost every electric car sold in India. Your car decides the top speed: a car that accepts 7 kW charges at 7 kW even on a bigger charger. The charging-speed tool on this page shows the time for your model.

Can my home’s electricity connection take it?

Check two things on your electricity bill: your sanctioned load, and whether the supply is single phase or three phase. This page lists what Aveo 3.6 needs under “What your site needs”. If your load is short, your electricity company can increase it; the application is made in your name and we guide you through it.

What wiring, breaker and earthing does it need?

A dedicated circuit of its own, a breaker, a surge protection device and proper earthing. The cable size, breaker rating and longest cable run for Aveo 3.6 are listed under “What your site needs” on this page. Longer runs need a site survey.

Is it safe outdoors and in the rain?

Yes. The charger is rated for protection against dust and water (the rating is in the specifications on this page), so it can be used outdoors.

What happens after a power cut?

When the charger is set to Quick charge or Plug & charge mode, charging resumes on its own once the power is back.

Who installs it, and what if I live in a society?

Aveo 3.6 is portable: it plugs into the socket listed under “What your site needs” on this page, so there is nothing to mount. If that socket or its circuit has to be put in, we can do it for you; we install and service in every city across India.

If the cable passes through common areas, you will need permission (NOC) from your society before the visit.

What if it stops working?

Raise a service request or write to support@zevpoint.com. We first try to fix it remotely over a call or video, which is usually the quickest. If it needs repair, we arrange a free pickup from your address and deliver the repaired or replacement charger back. Technical support is free for the life of the charger.

Shipping, Cash on Delivery and GST invoice

Orders are processed and shipped within 24 hours, and tracking details are emailed to you.

Cash on Delivery is available across India. We take a small confirmation amount when you order and collect the balance at delivery. Call +91 9779750538 to arrange it.

GST invoice: email your GST details to support@zevpoint.com after ordering.

What does the warranty cover?

Cables: up to 5 years, covering defects but not physical damage to connectors. Housing and enclosure: 5 years. Other components: 2 years against manufacturing defects. Accessories: not covered.

The warranty doesn't cover improper use, power surges, supply-side electrical faults, burnouts or unauthorised modifications. Full warranty terms

Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.

Can I return it?

Within 7 days of receipt, unused and in the original packaging with all accessories and documentation. Proof of purchase is required. Start a return

Not returnable: Cash on Delivery orders, No Cost EMI orders, bulk orders of two or more, DC chargers and EV accessories. Full return policy

Aveo 3.6 is a light portable charger that runs from an ordinary 16A home socket and delivers up to 3.6 kW. It suits cars that charge at 3.3 kW or 3.6 kW, and any car when a slower overnight charge is enough.

A switch sets the current to 8A, 10A or 16A, so it can charge where the connected load is limited. There is no app to set up: plug it in, connect the car, and it charges. At 2.5 kg it is easy to keep in the boot.

Specifications

  • Output: Up to 3.6 kW
  • Supply: Single phase, 220-240V
  • Current: Switchable, 8A, 10A or 16A
  • Plug: 16A 3-pin plug for an ordinary home socket
  • Car connector: Type 2 (IEC 62196-2)
  • Cable length: 5 m
  • Control: Plug and charge (no app)
  • Protection rating: IP66, dust and water resistant
  • Safety: Auto cut-off, overload, short-circuit, leakage, earthing and over-temperature protection
  • Operating temperature: -30°C to +50°C
  • Unit size: 250 x 120 x 80 mm
  • Weight: 2.5 kg
  • Packed size: 400 x 400 x 100 mm
  • In the box: Aveo 3.6 charger, instruction manual
  • Warranty: 5 years on cable and enclosure, 2 years on all other components

Installation

  • Power point: A dedicated 16A single-phase socket with adequate connected load
  • Cable: 4 sq mm 3-core copper cable (XLPE / HR FRLS) for a run of up to 39 m from the distribution board; 6 sq mm up to 58 m. Longer runs need a site survey.
  • Circuit breaker: 20A double-pole MCB
  • Residual current: RCCB on the charger circuit
  • Surge protection: Single-phase SPD, required
  • Earthing: Proper earthing is required
  • Voltage stabiliser: If the supply voltage fluctuates often, use a suitable voltage stabiliser.
