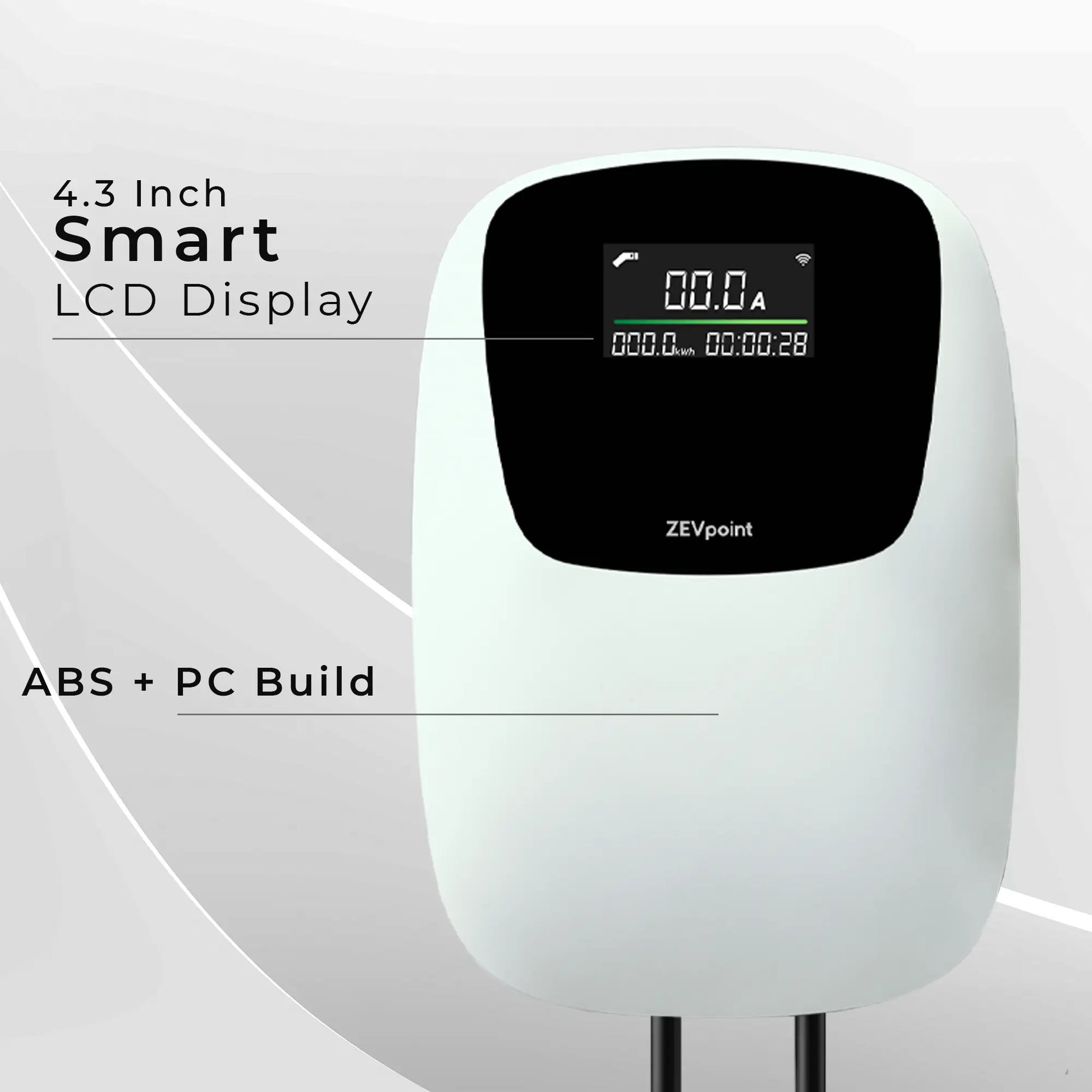

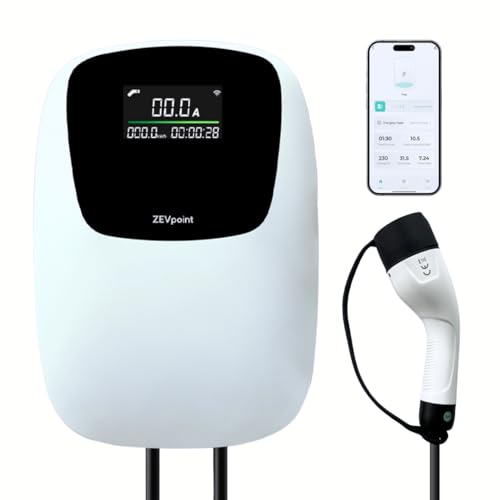

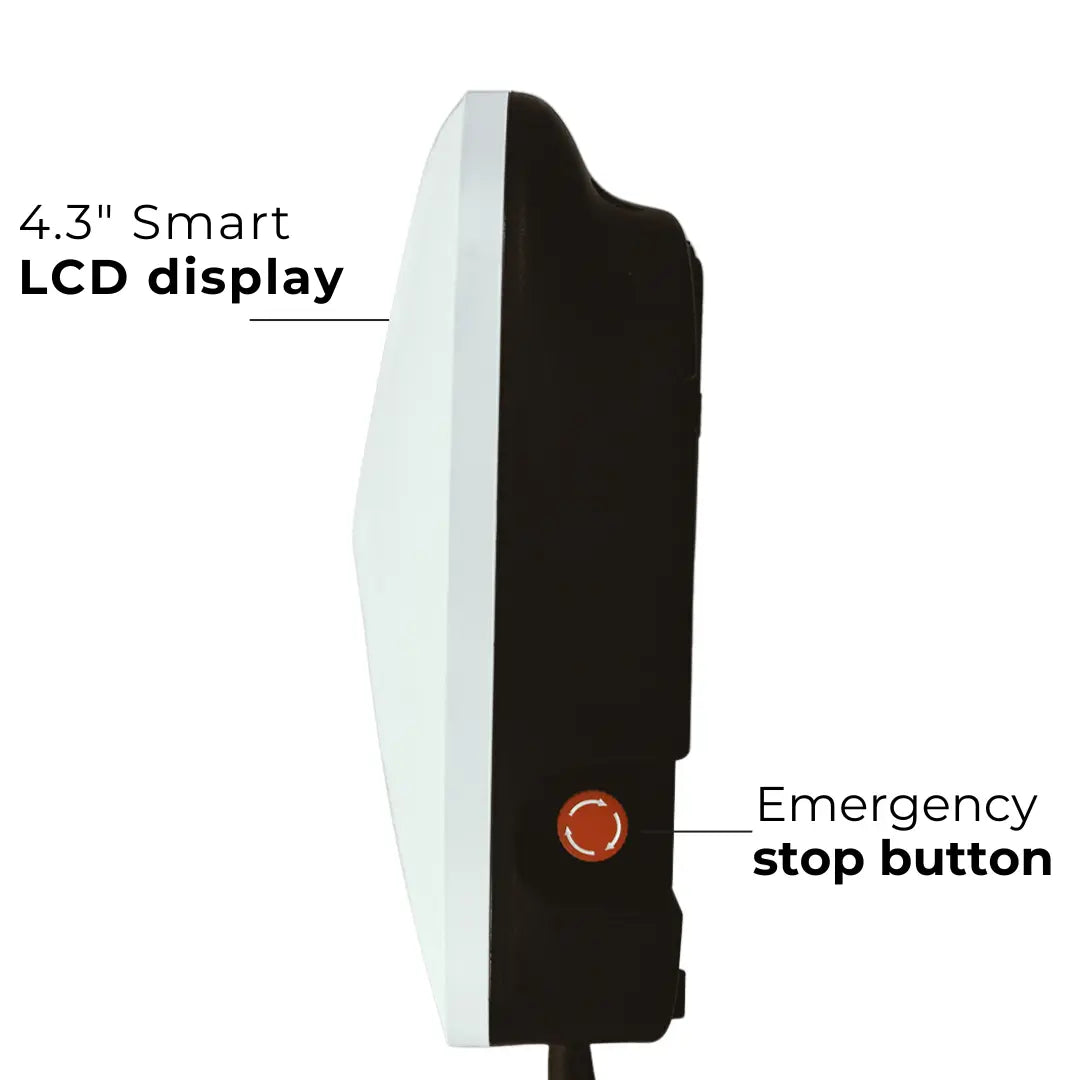

Experience seamless EV charging with the Polar Max 11 kW EV Charger. Designed for speed, efficiency, and durability, it delivers ultra-fast charging for your electric vehicle, making it ideal for home and business use Equipped with an emergency switch for added safety, the Polar Max is designed for peace of mind and convenience.
Enjoy the versatility of its 3-in-1 charging modes—Plug & Charge, RFID, or the intuitive Zevpoint Home Mobile App. With advanced Bluetooth connectivity, managing your charging sessions is effortless, whether you're at home or on the go.Â
Upgrade to the Polar Max for a high-performance, eco-friendly charging solution that combines power, reliability, and style. Perfect for EV enthusiasts who value speed, innovation, and convenience.
Specifications & Installation
-
Output: Up to 11kW
Current Options: 6A-32A
Input Voltage: 400V
Cable Length: 20 feet
Connector Type: Type 2 (IEC 62196-2)
-
Dimensions: 322mm x 188mm x 119mm
-
Weight: 6.5 kg
-
Operating Temperature: -35°C to +60°C
-
Safety Features: Overheat prevention, Short circuit protection grounding, water resistance, dust resistance, emergency stop swtich
Installation Requirements
-
Power: A dedicated 3 phase power source with adequate connected load is required for optimal performance
-
Wiring: Use a minimum of 6 square mm, 5-core copper cable to handle the electrical load safely. In hot environments, consider using a 10 square mm copper cable.
-
Earthing: Ensure the power source is properly earthed to prevent electrical hazards.
-
Circuit Breaker: Install a 40A four-pole MCB (Miniature Circuit Breaker), Surge Protection Device (SPD), and RCD (Residual Current Device) to protect against power surges and electrical faults.
-
Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
