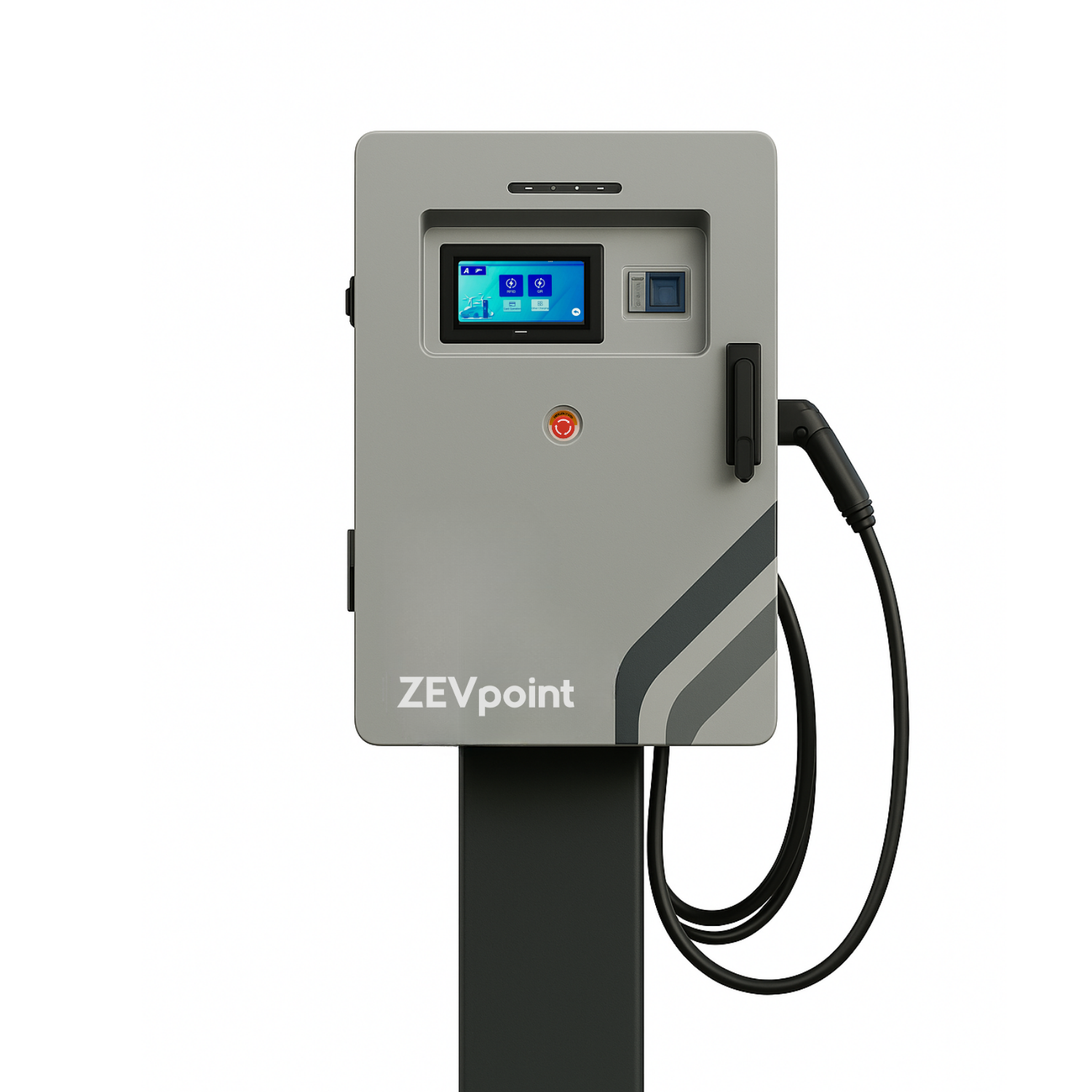

Navigator 30 kW DC fast EV charger
A 30 kW DC fast EV charger with one CCS2 gun and a 7-inch touch screen. Start by RFID, UPI or app, on OCPP 1.6.
Navigator 30 is a 30 kW DC fast EV charger made by Zevpoint for commercial sites in India, with CCS2 guns, a 2-year warranty and pan-India service. Price: Rs. 299,000.00 ex-factory, plus 5% GST; GST and freight are added at checkout. Dispatched in 2–3 working days. Zevpoint plans the site and sends a proposal within 24 hours.
- 1 × CCS2 gun
- OCPP 1.6
- RFID, UPI & App
- 7-inch touch screen
A compact 30 kW DC charger for captive sites, that drivers start and pay for on their own, run from one dashboard.
- 7-inch touch screen: Session data and prompts for every driver.
- 1 × CCS2 gun, 5 m: Charges any car with a CCS2 socket.

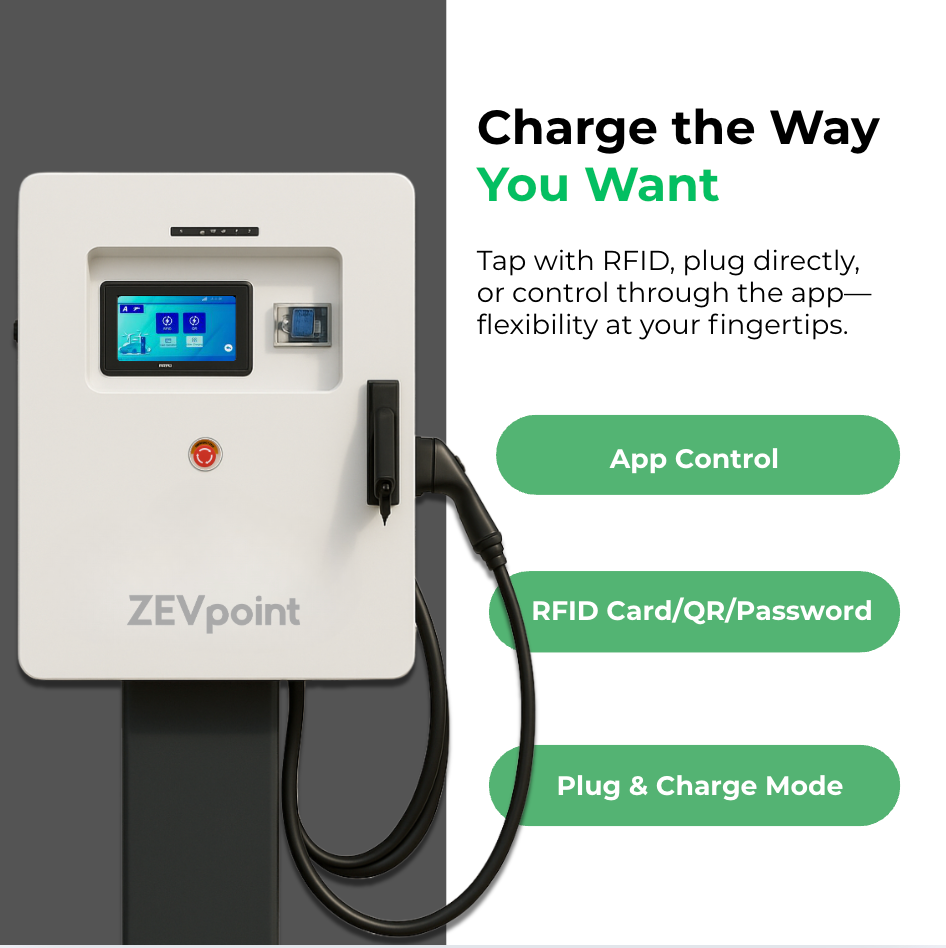

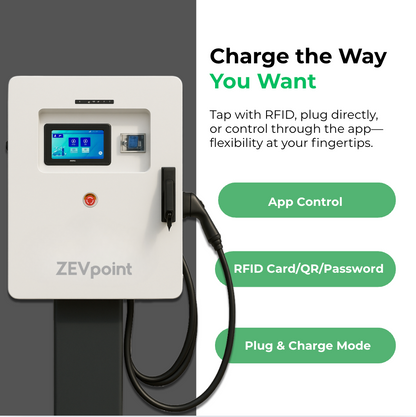

- RFID, QR or password: Drivers start a session their way.
- UPI and card: Drivers pay through the Zevpoint app.
- Real-time monitoring: Charger status, availability and faults.
- Session management: Every session and the energy it used.
- Pricing and revenue: Set tariffs and track what you earn.
- Remote management: Manage chargers from anywhere.
- 10+ protections: Over-current, surge, leakage, ground fault, reverse polarity and more.
- Insulation monitoring: Watches the high-voltage side all the time.

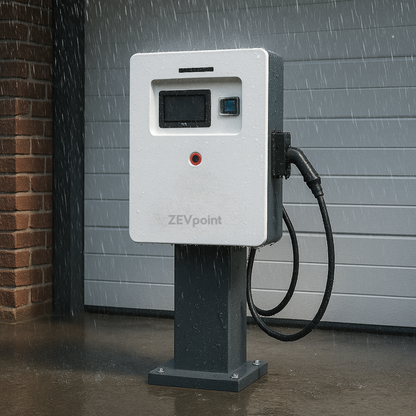

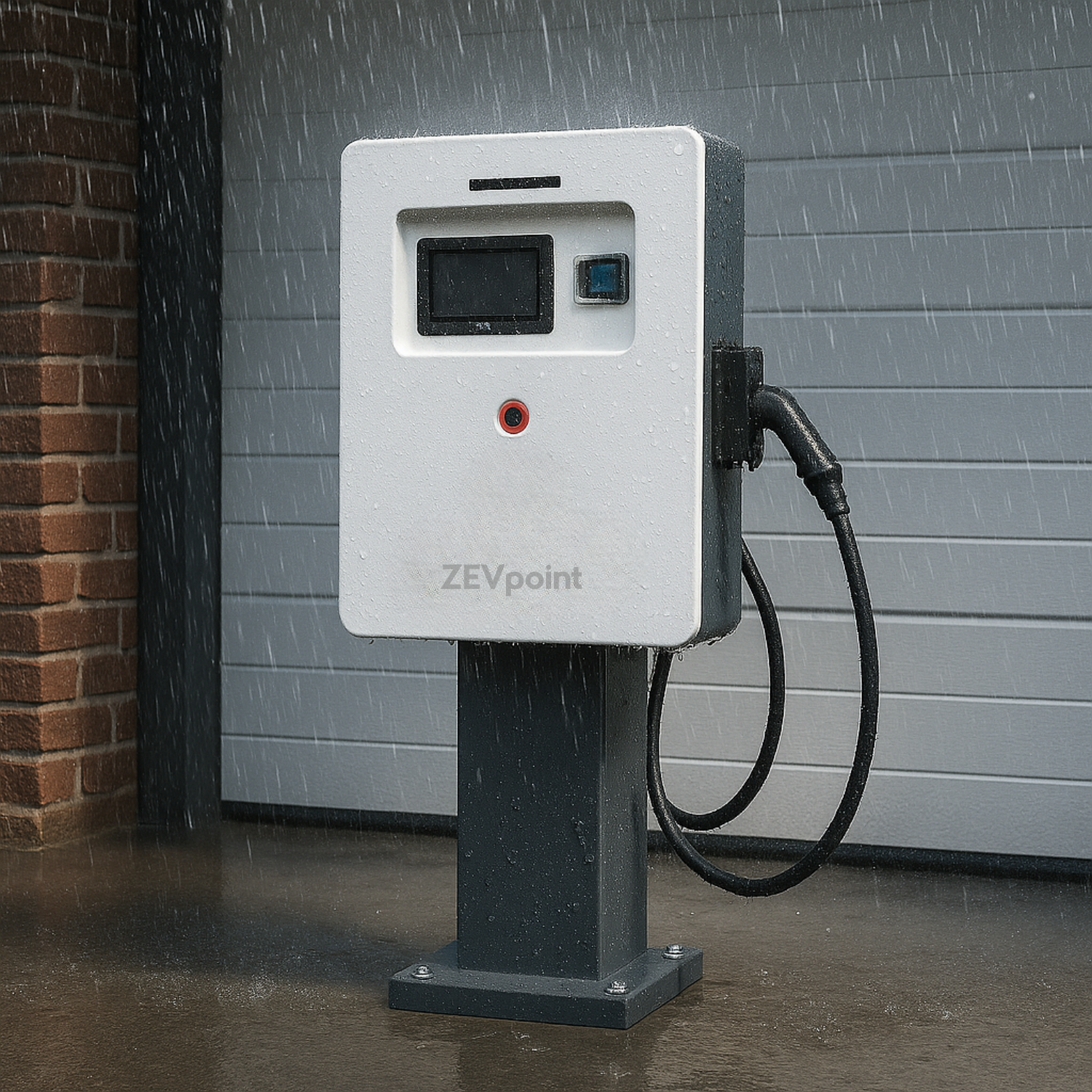

- IP54 · IK10: Dust, splash and impact resistant.
- CE certified: Tested to Indian and international standards.
Which one is right for you?
- Navigator 30 (30 kW): Offices, dealerships, fleet depots and housing societies.
- Nova 60 (60 kW): Charging hubs, highway stops, fleet depots and societies.
- Nova 120 (120 kW): Highway stations, logistics hubs and large societies.
- Nova 180 (180 kW): Busy highway stations and logistics hubs, buses and trucks too.
- Nova 240 (240 kW): Highway corridors, heavy fleets and large public stations.
Navigator 30 specifications
- Output: Up to 30 kW DC
- Guns: 1 × CCS2, 5 m cable
- Input supply: Three phase, 380–415 V AC, 50 Hz
- Sanctioned load: About 35 kVA, as sanctioned by your DISCOM
- Input current: 63 A
- Output voltage: 150–1000 V DC
- Efficiency: Above 98.5%
- Protection rating: IP54, dust and splash resistant
- Impact rating: IK10
- Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
- Certifications: CE (ARAI in process)
- Compliance: IEC 61851-1, IEC 61851-21-2
- Suits: Any car with a CCS2 socket
- Display: 7-inch touch screen
- Start a session: RFID, OCPP 1.6, password or QR code
- Payment: UPI and card, through the Zevpoint app
- Network: OCPP 1.6 over Wi-Fi or 4G
- Cooling: Air
- Housing: Stainless steel
- Operating temperature: -25°C to +70°C
- Unit size: 824 x 600 x 364 mm
- Weight: 75 kg
- Packed size: 1000 x 1000 x 680 mm
- Warranty: 2-year warranty
What your site needs for Navigator 30
- Power supply: About 35 kVA, 3-phase 415 V — Sanctioned supply, as approved by your DISCOM.
- Supply cable: 25 sq mm 4-core armoured copper — Or 35 sq mm 4-core armoured aluminium.
- Upstream protection: 63 A MCB + DC isolator — At the supply end, for the charger only.
- Earthing: 2 earth pits, under 2 Ω — Tested before the charger is switched on.
- Civil work: 0.8 × 0.8 m RCC plinth — With a canopy over the charger.
- Connectivity: Wi-Fi or 4G SIM — Keeps the charger online for OCPP.
How does buying a DC charger work?
Book a site study. An engineer visits your plot, and you get the layout, single-line diagram and cost estimate for your site within 24 hours. Payback comes with the Project report.
One team then supplies, installs and commissions the charger. How plan and build works
What does my site need?
A three-phase 415 V connection with enough sanctioned load, an armoured supply cable, upstream protection, earth pits and an RCC plinth. The figures for Navigator 30 are under “What your site needs” on this page.
Do I need a franchise to run it?
No. You own the charger, set your own tariffs and track what you earn. It runs on OCPP 1.6, so it can connect to a charging network.
How do drivers start a session and pay?
They start by RFID card, QR code or password, and pay by UPI or card through the Zevpoint app.
How do I manage it?
From anywhere: you see the charger’s status and faults live, every session and the energy it used, and your revenue.
What warranty and service come with it?
A 2-year warranty, with service across India.
Support: support@zevpoint.com · +91 9779750538 · Monday to Saturday, 10 AM to 6 PM.
How soon will I get it?
It is dispatched in 2–3 working days.
Can I return it?
DC chargers are not returnable. That is why we plan the site with you before you order. Full return policy
Navigator is a compact 30 kW DC fast charger with one CCS2 gun, for offices, dealerships, fleet depots and housing societies.

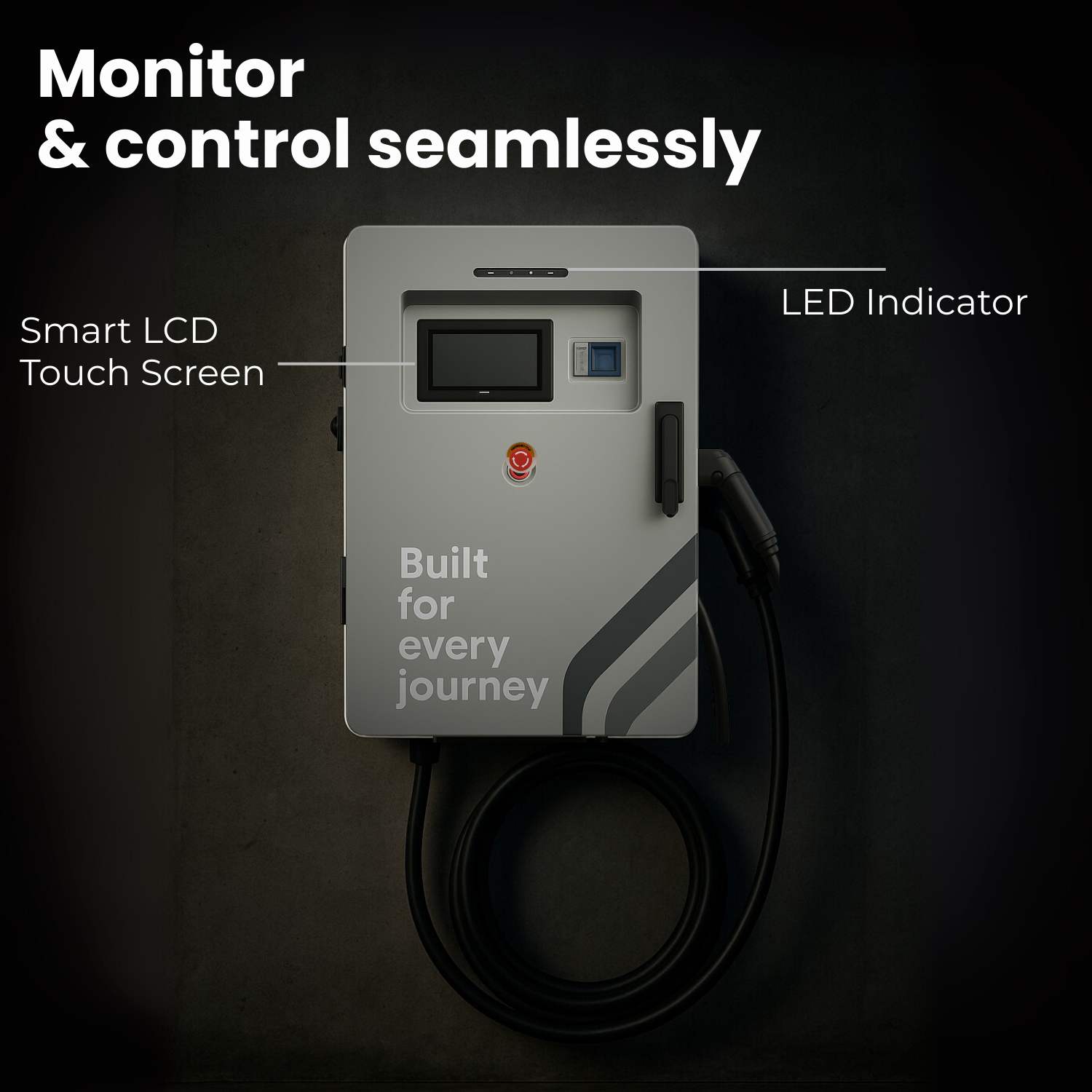

It connects to a charging network over OCPP 1.6, starts sessions by RFID, password or QR code, and takes UPI or card payment through the Zevpoint app. A 7-inch touch screen and LED indicators sit in a stainless steel housing.
Specifications
- Output: Up to 30 kW DC
- Guns: 1 x CCS2, 5 m cable
- Suits: Any car with a CCS2 socket
- Input supply: Three phase, 380-415V AC, 50Hz
- Sanctioned load: About 35 kVA, as sanctioned by your DISCOM
- Input current: 63A
- Output voltage: 150-1000V DC
- Efficiency: Above 98.5%
- Display: 7-inch touch screen
- Start a session: RFID, OCPP 1.6, password or QR code
- Payment: UPI and card, through the Zevpoint app
- Protection rating: IP54, dust and splash resistant
- Impact rating: IK10
- Cooling: Air
- Safety: Emergency stop, over-current, short-circuit, over-temperature, leakage, surge, under- and over-voltage, ground fault, reverse polarity, insulation monitoring, charge cable temperature detection
- Operating temperature: -25°C to +70°C
- Weight: 75 kg
- Packed size: 1000 x 1000 x 680 mm
- Warranty: 2 years on-site, with 48-hour priority service
Site readiness
- Power supply: 3-phase 415V AC input, about 35 kVA, sanctioned supply as per DISCOM
- Supply cable: 25 sq mm 4-core armoured copper, or 35 sq mm 4-core armoured aluminium
- Upstream protection: 63A MCB + DC isolator
- Earthing: 2 earth pits, <2 ohm
- Civil work: 0.8m x 0.8m RCC plinth + canopy
- Connectivity: Broadband or 4G SIM at site for OCPP
