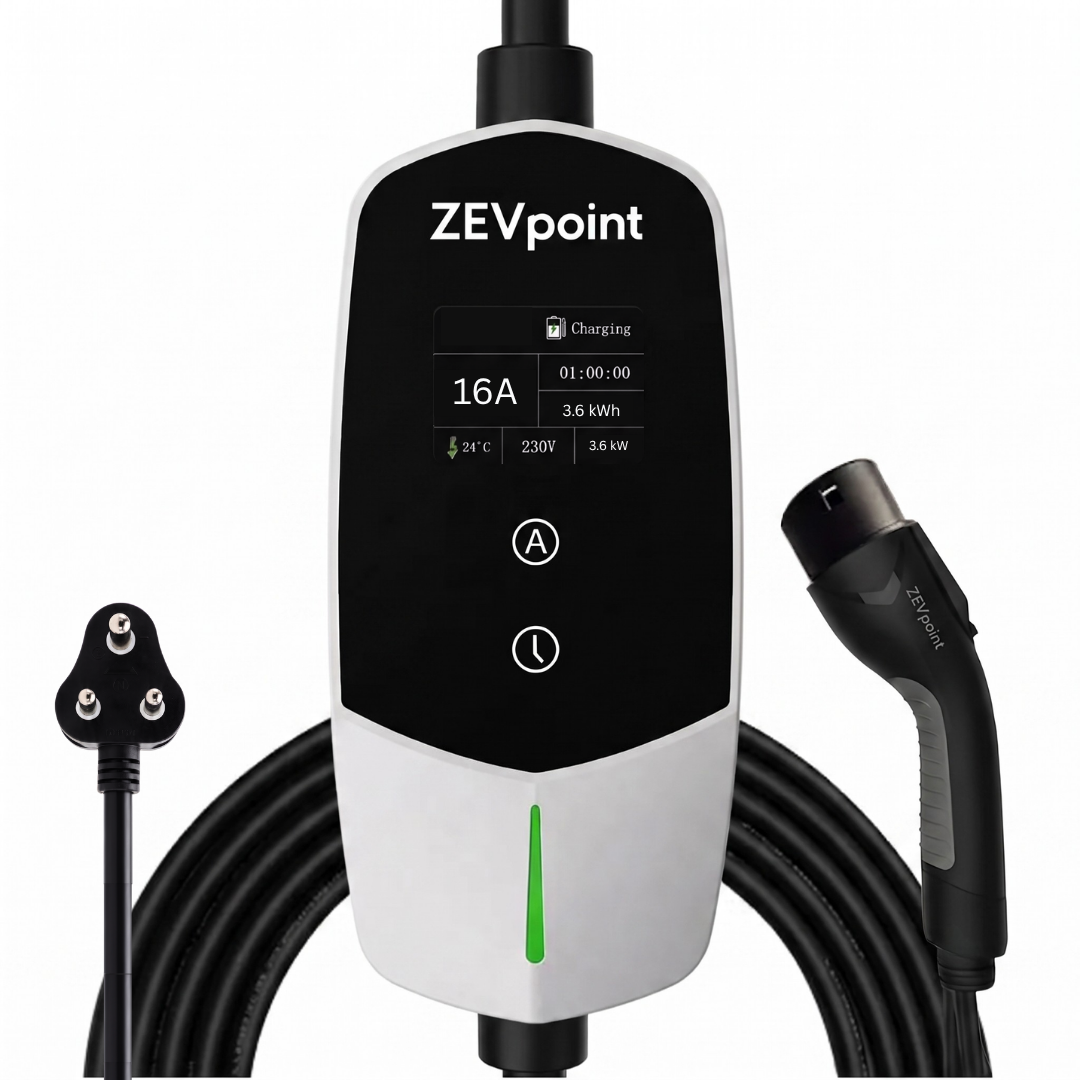

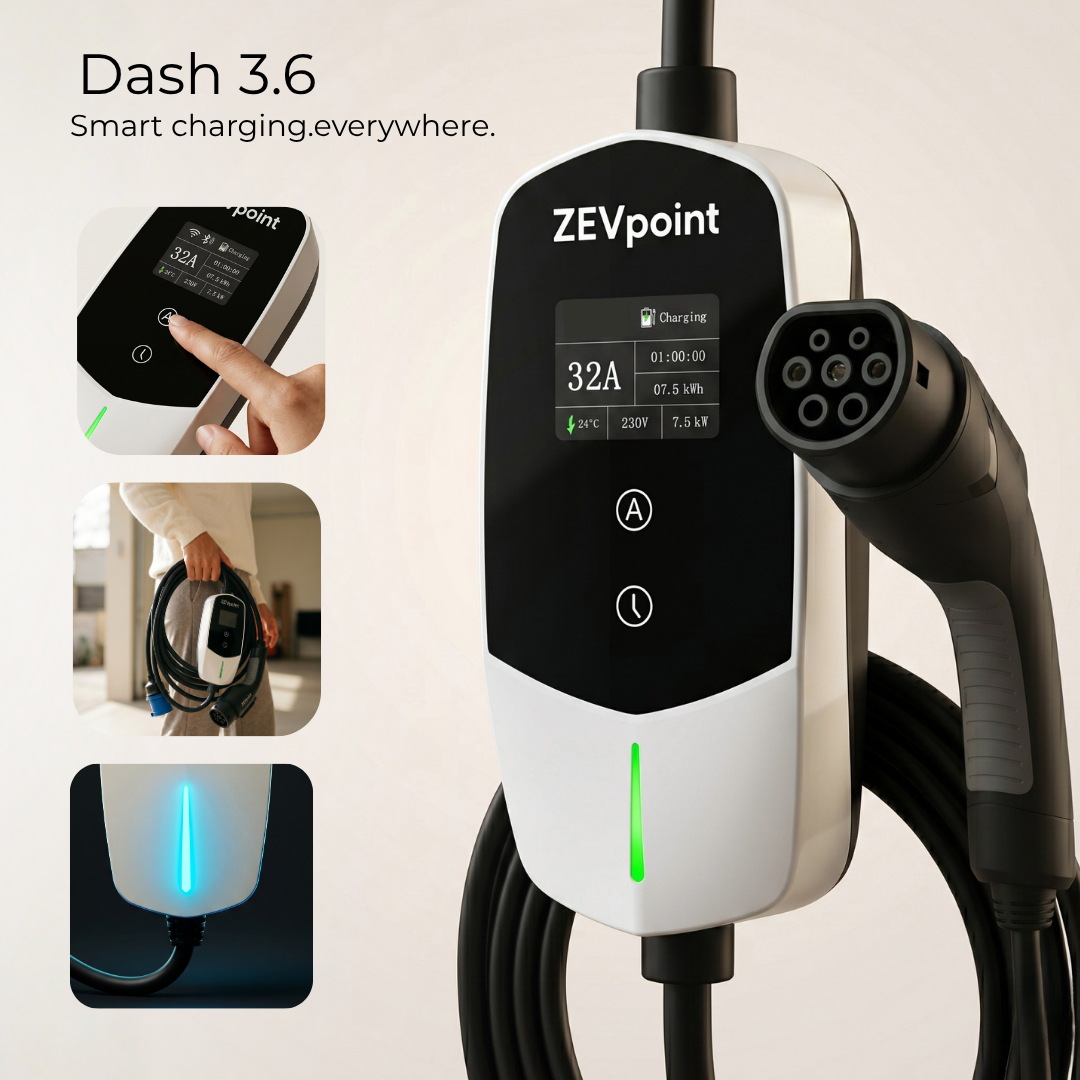

Dash 3.6 is the simplest way to charge at home. It runs from an ordinary 16A single-phase socket and delivers up to 3.6 kW, with no three-phase connection and no special supply to arrange. Plug it in, connect the car, and it charges.

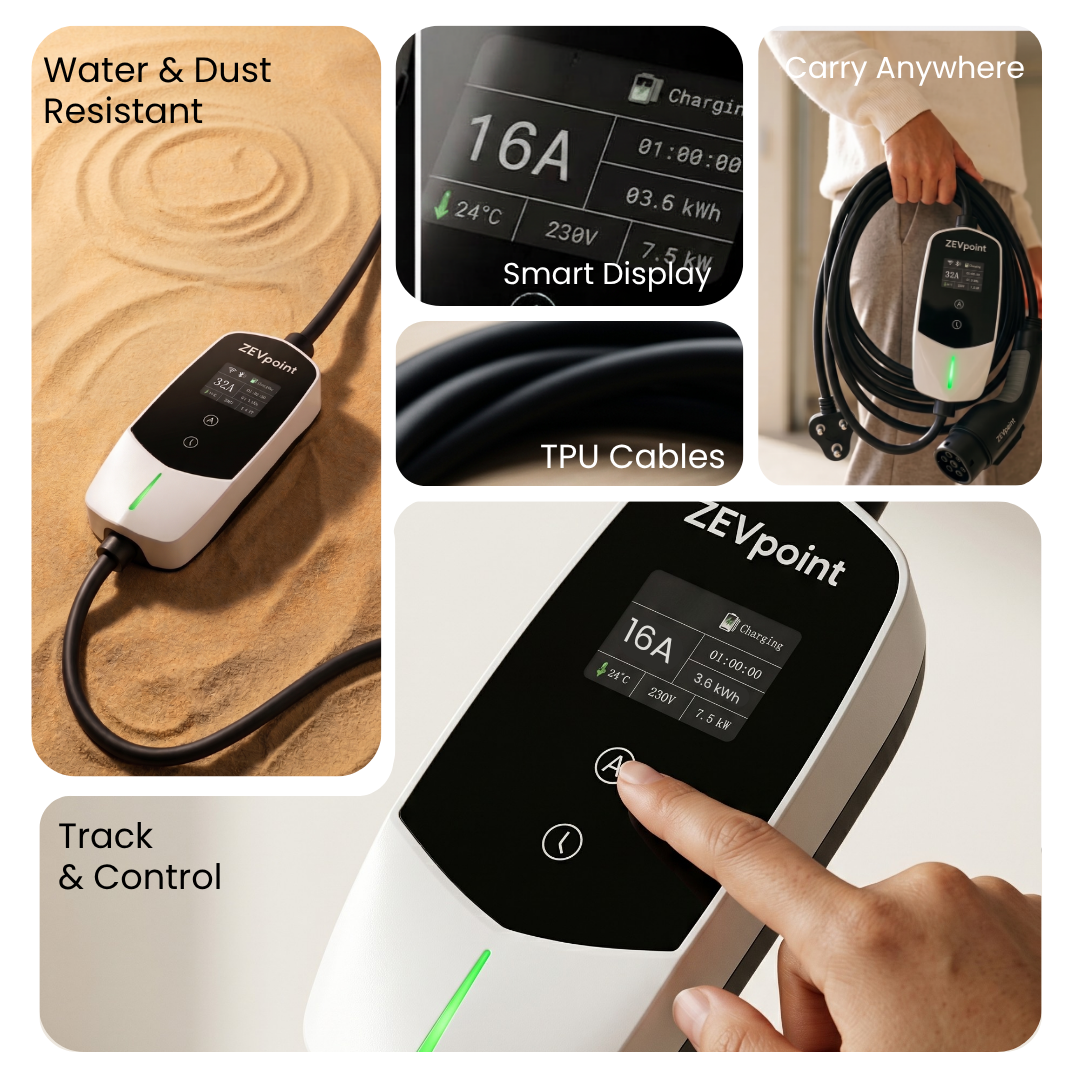

A built-in display keeps you informed while it works, showing live voltage, current, power and session time on the unit itself, so you can see exactly what your car is drawing at a glance. For most daily driving, 3.6 kW overnight is all you need, and the charger packs into the included carry bag when you travel.
Specifications & Installation
Output: Up to 3.6 kW
Current: 16A, single phase
Input Voltage: 230V, single phase
Connector Type: Type 2 (IEC 62196-2)

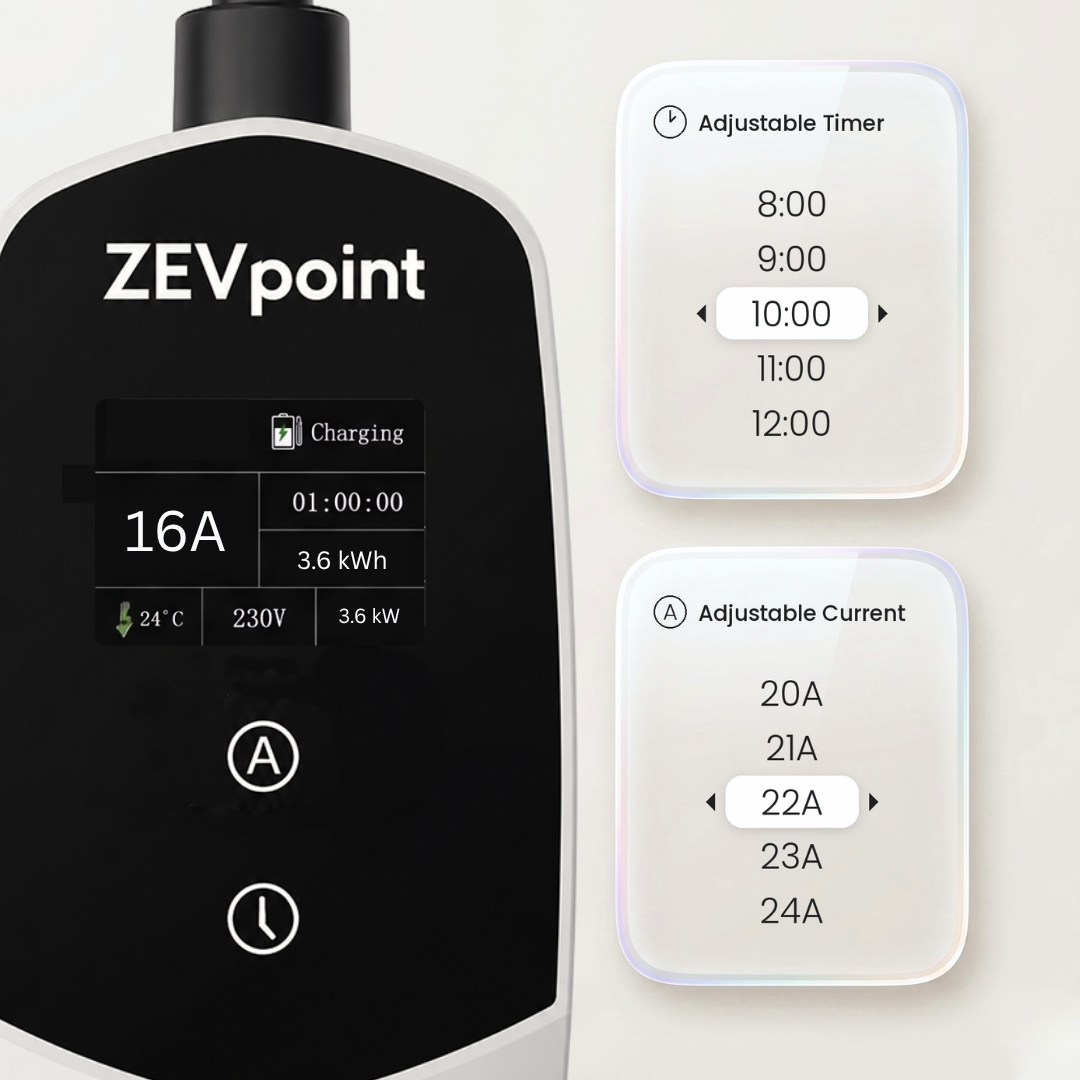

Control: Built-in display on the unit

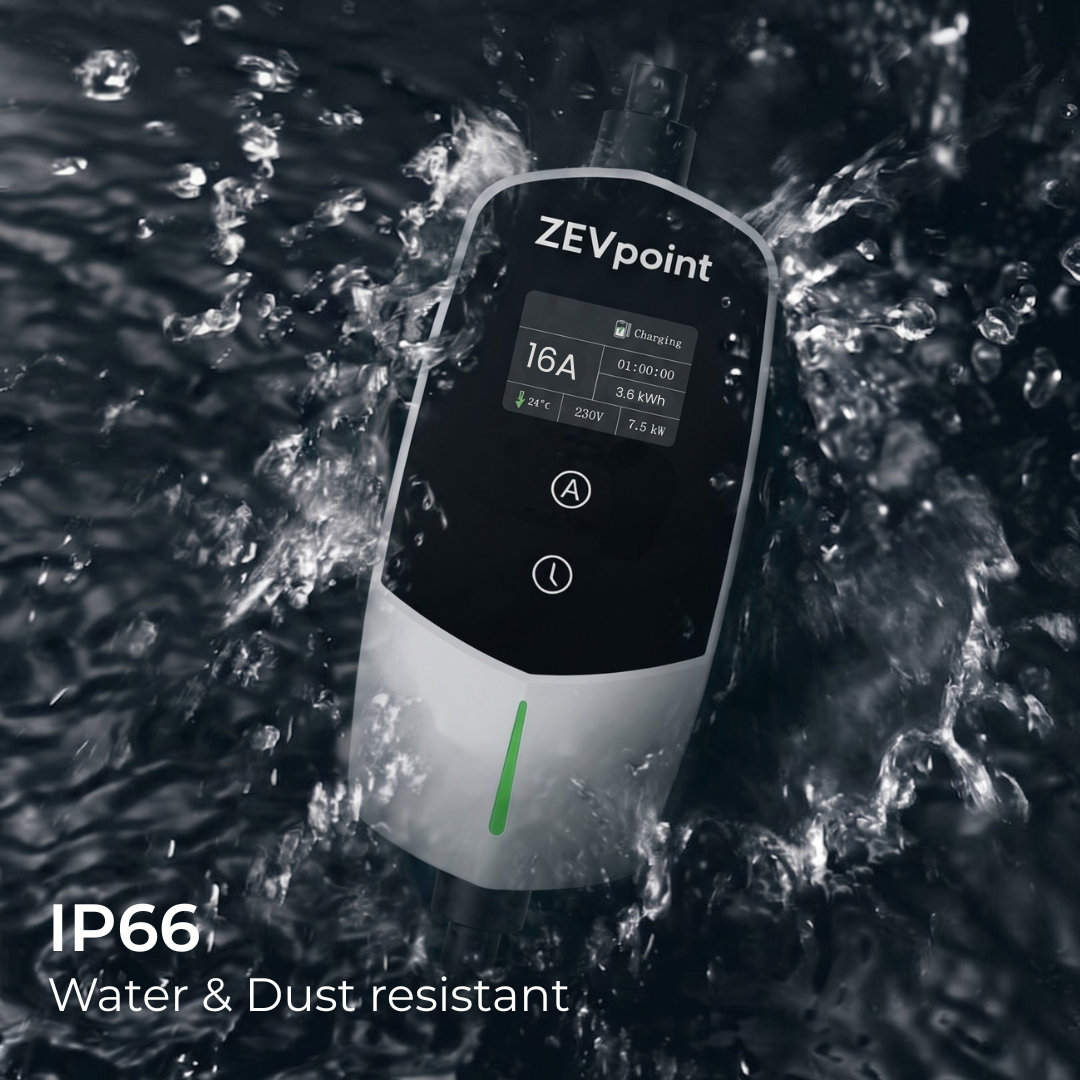

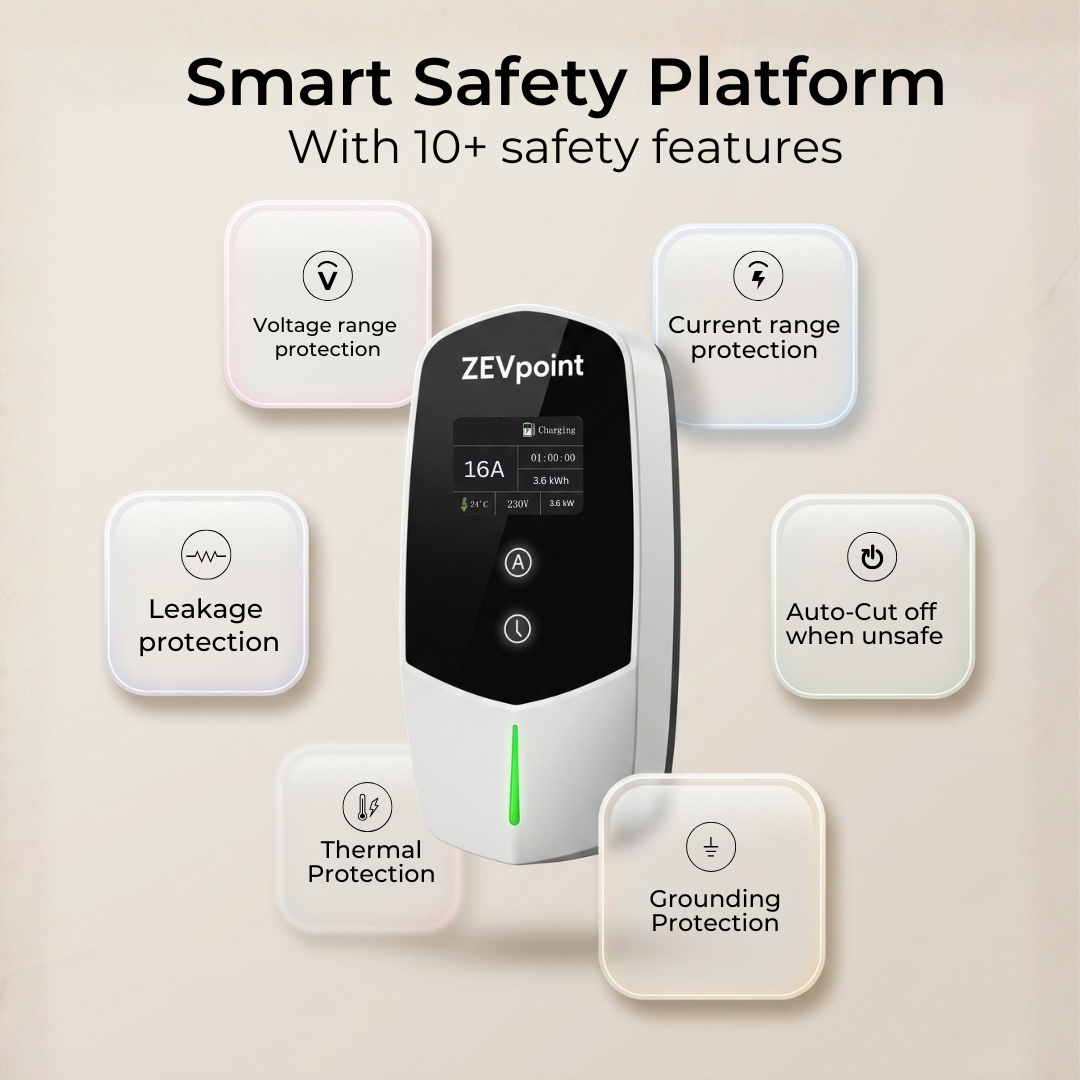

Safety Features: Auto cut-off, overload protection, short circuit protection, leakage protection, earthing protection, over-temperature protection, water and dust resistance (IP66)
In the Box: Dash 3.6 charger, carry bag and instruction manual
Warranty: 5 years on cables and enclosure, 2 years on all other components
Install Guide
-
Power Socket: A dedicated 16A socket with adequate connected load is required for optimal performance.
-
Earthing: Ensure the power socket is properly earthed to prevent electrical hazards.
-
Circuit Breaker: Install an appropriately rated MCB and a Surge Protection Device (SPD) to protect against power surges and electrical faults.
-
Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
