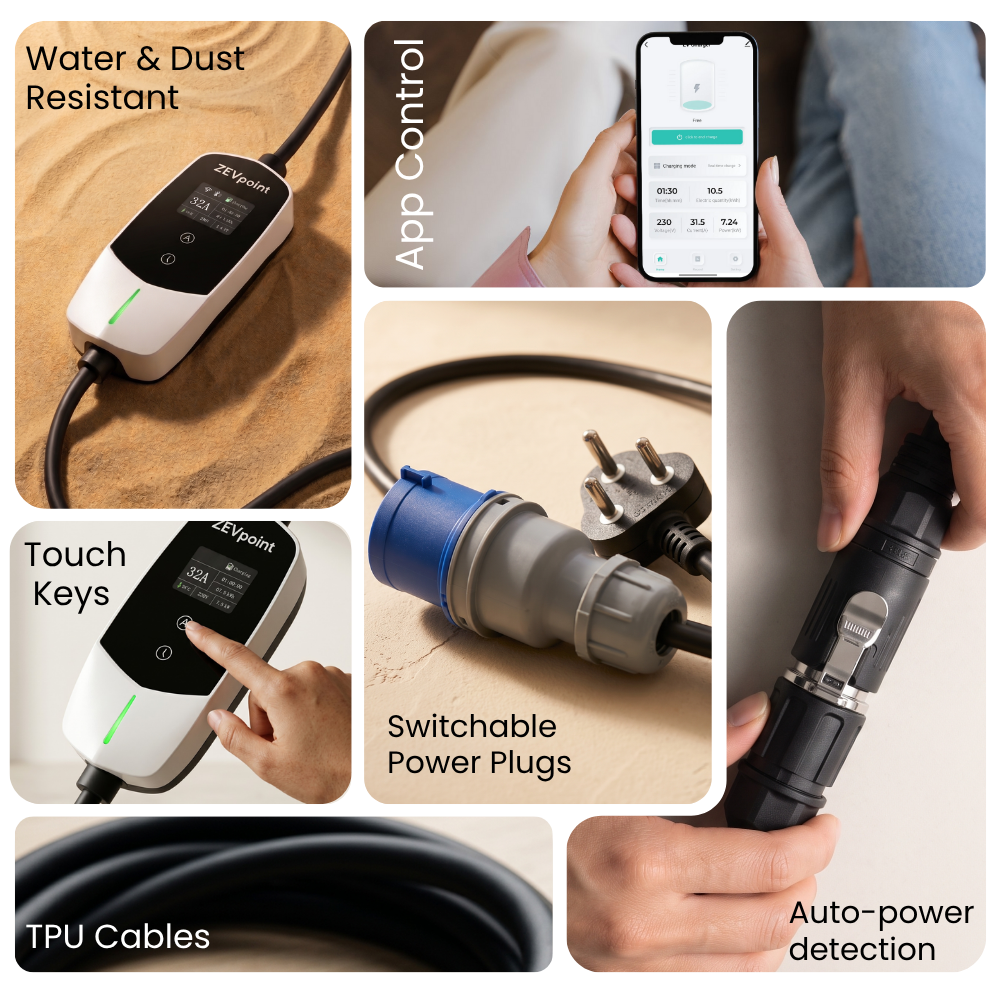

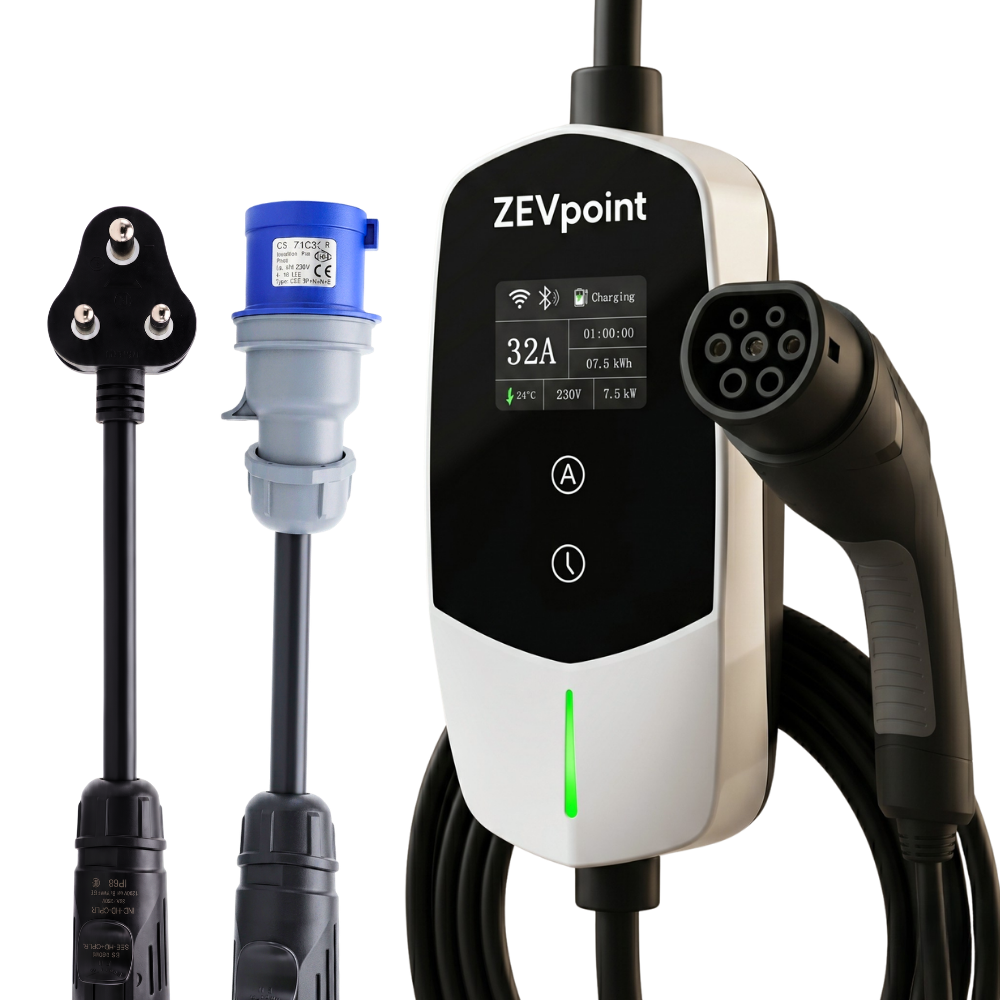

AIO Pro is built on one simple idea: the charger should fit the socket in front of you, not the other way round. Its plugs are interchangeable, so the same unit that charges at a full 7.5 kW from a 32A CEE point at home drops onto a 16A industrial socket at the office without a single adaptor.
That 32A single-phase design matters more than the headline number suggests. Plenty of chargers advertise large kilowatt figures that only appear on a three-phase connection most Indian homes do not have. AIO Pro is rated 32A on ordinary single-phase power, so the 7.5 kW on the box is the 7.5 kW you actually get.
Specifications & Installation
Output: Up to 7.5 kW, single phase

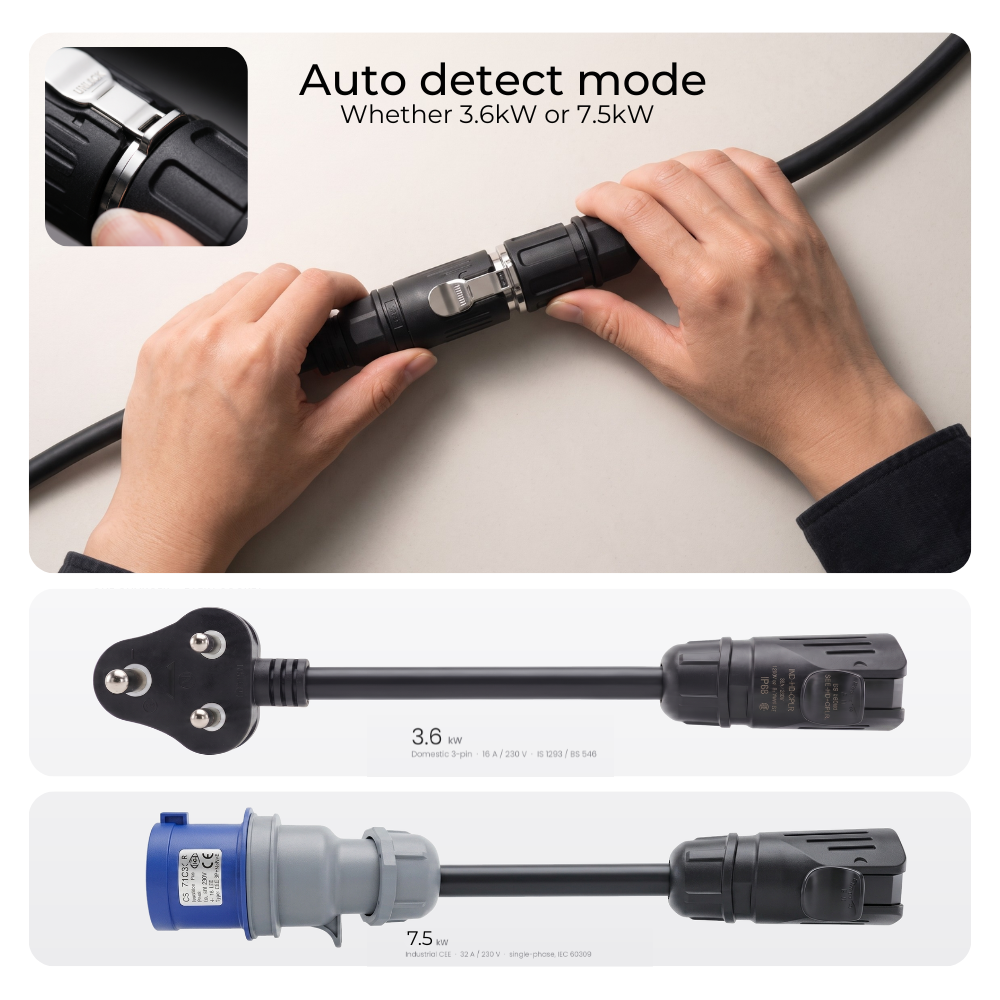

Connectors: 16A 3-pin CEE and 32A 3-pin CEE, interchangeable
Current Options: 8A to 16A on the 16A plug, 8A to 32A on the 32A plug
Input Voltage: 230V, single phase
Connector Type: Type 2 (IEC 62196-2)
Control: Built-in display with touch buttons, plus Zevpoint Home App
Packed Dimensions: 400 x 400 x 100 mm
Packed Weight: 3.2 kg

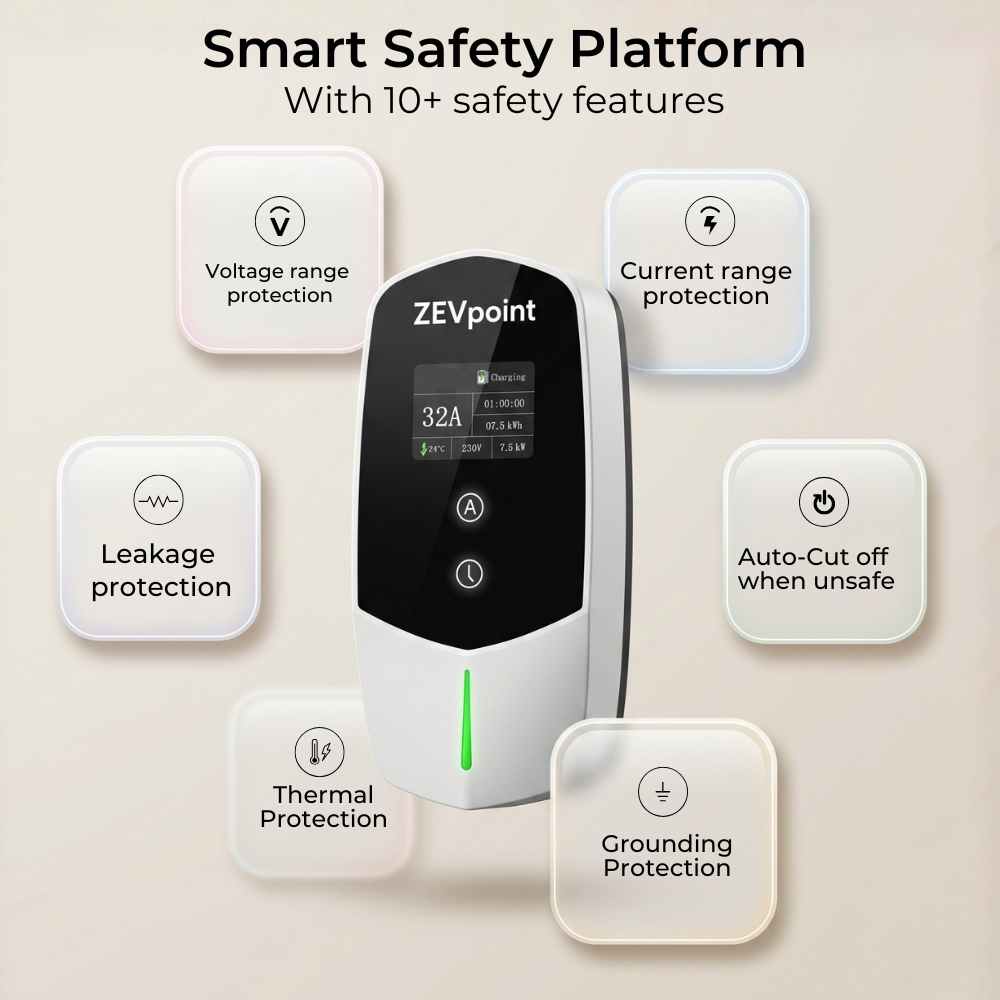

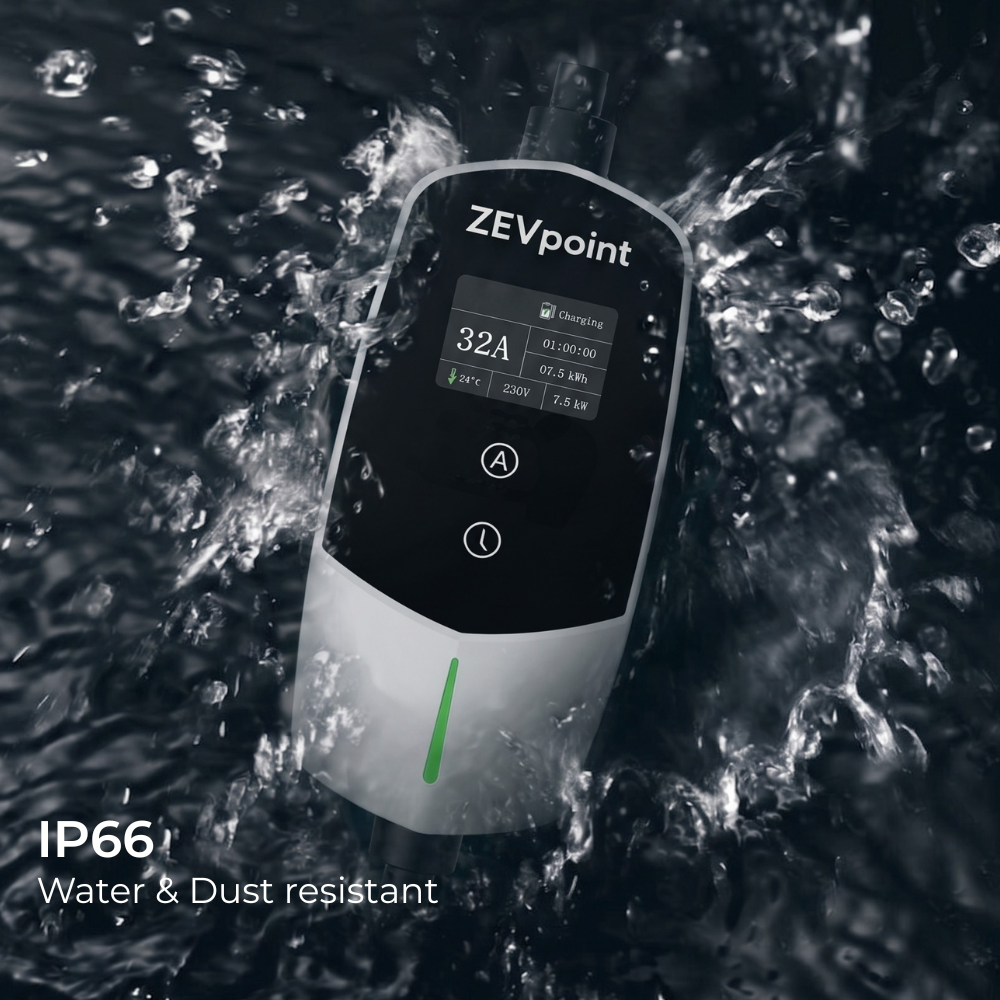

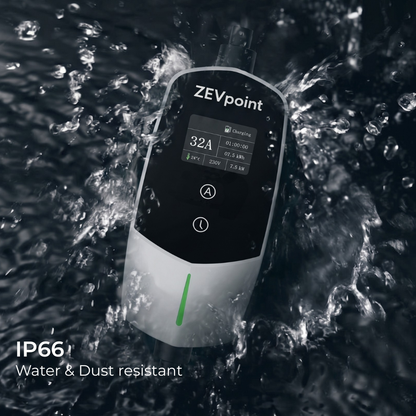

Safety Features: Auto cut-off, overload protection, over-voltage protection, over-temperature protection, leakage protection, earthing protection, water and dust resistance (IP66)
In the Box: AIO Pro charger, 16A 3-pin CEE socket, 32A 3-pin CEE socket, carry bag, wall bracket and instruction manual
Warranty: 5 years on cables and enclosure, 2 years on all other components
Install Guide
-
Power Socket: A dedicated 16A or 32A single-phase socket with adequate connected load, depending on which plug you use. Both CEE sockets are included in the packaging.
-
Wiring: Use a minimum of 6 square mm, 3-core copper cable to handle the electrical load safely. In hot environments, consider a 10 square mm copper cable.
-
Earthing: Ensure the power socket is properly earthed to prevent electrical hazards.
-
Circuit Breaker: Install a 40A double/two-pole MCB (Miniature Circuit Breaker) and a Surge Protection Device (SPD) to protect against power surges and electrical faults.
-
Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
