AIO Max is the charger you buy when you refuse to choose. Three interchangeable plugs, a 16A 3-pin, a 32A 3-pin single-phase and a 32A 5-pin three-phase, all fit the same unit, so it charges wherever you happen to park. It senses whether the supply is single-phase or three-phase on its own and configures itself to match, so there is no mode to select and no way to get it wrong.
The number that matters is 32A per phase. On a three-phase connection AIO Max delivers up to 22 kW. On the ordinary single-phase supply in most Indian homes it still delivers the full 7.5 kW, which is where many high-kilowatt chargers quietly disappoint: an 11 kW unit is only 16A per phase, so on single-phase power it manages roughly 3.6 kW and charges your car slower than a basic 7.5 kW charger would. AIO Max never makes that trade, which makes it the honest answer for anyone charging in two places, a three-phase office or factory by day and a single-phase home at night.
Specifications & Installation
Output: Up to 22 kW on three phase, up to 7.5 kW on single phase
Phase Detection: Automatic, no mode selection required

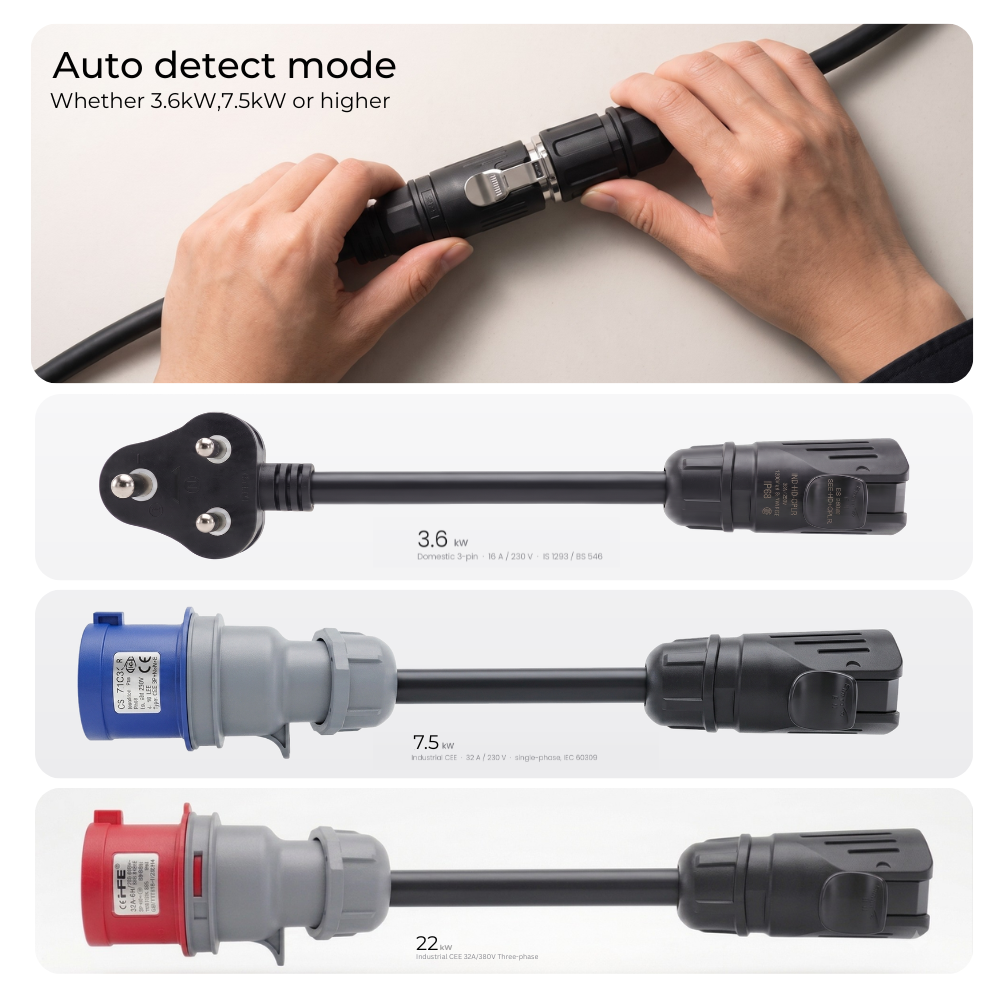

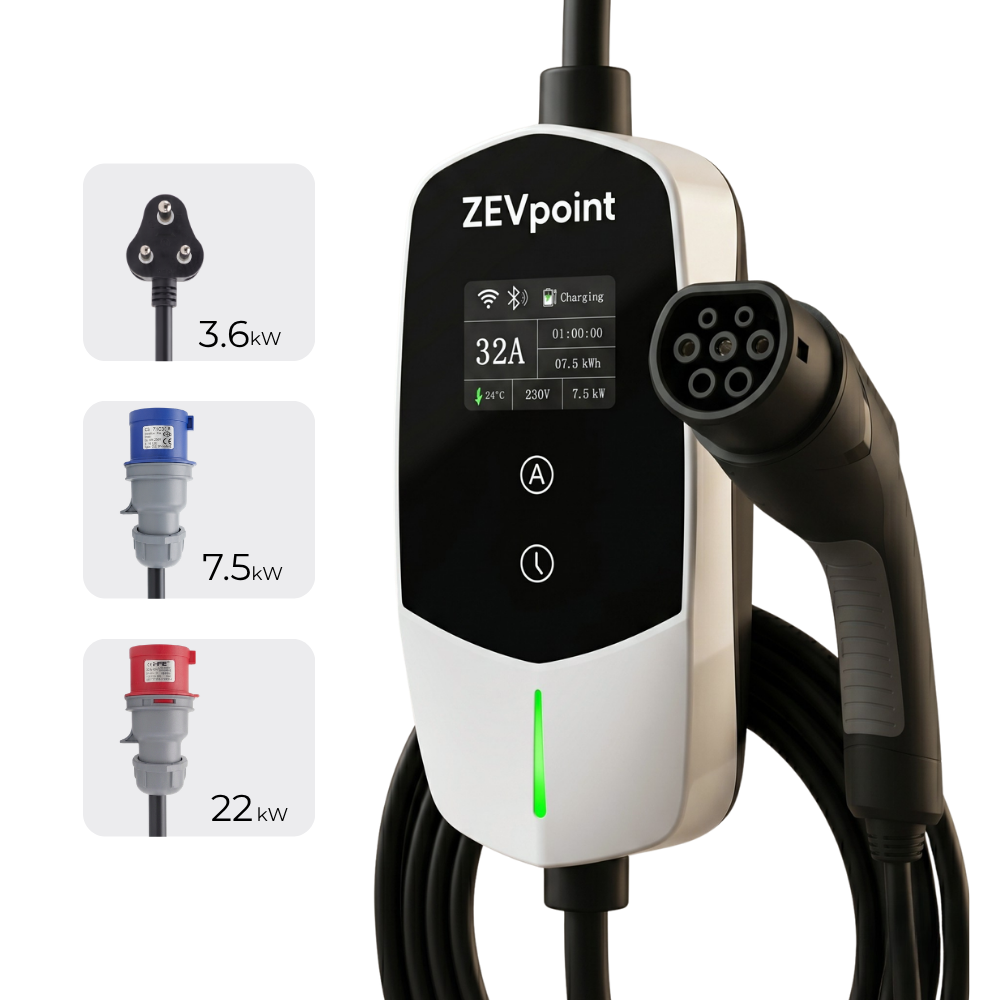

Connectors: 16A 3-pin CEE, 32A 3-pin CEE single phase and 32A 5-pin CEE three phase, interchangeable
Current Options: Adjustable from 8A to 32A on every plug
Input Voltage: 230V single phase or 415V three phase
Connector Type: Type 2 (IEC 62196-2)

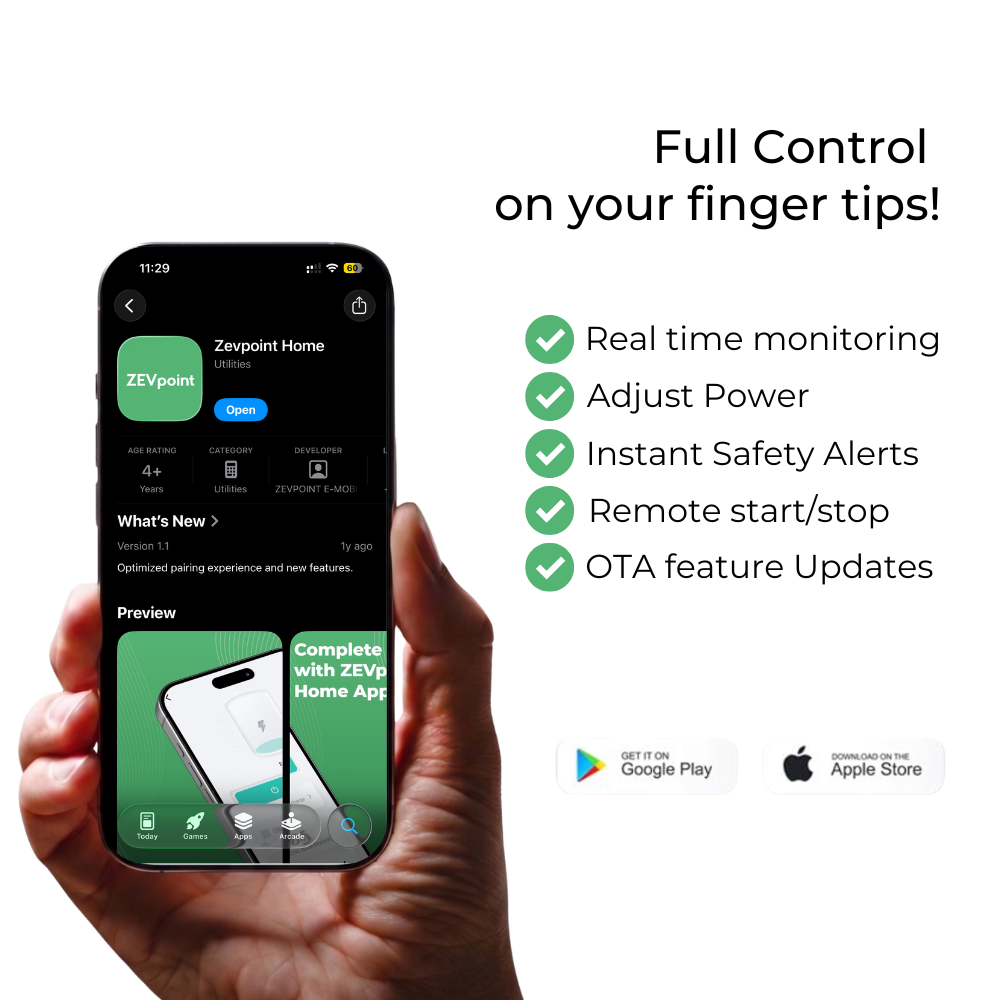

Control: Built-in display with touch buttons, plus Zevpoint Home App
Packed Dimensions: 450 x 440 x 120 mm
Packed Weight: 6 kg

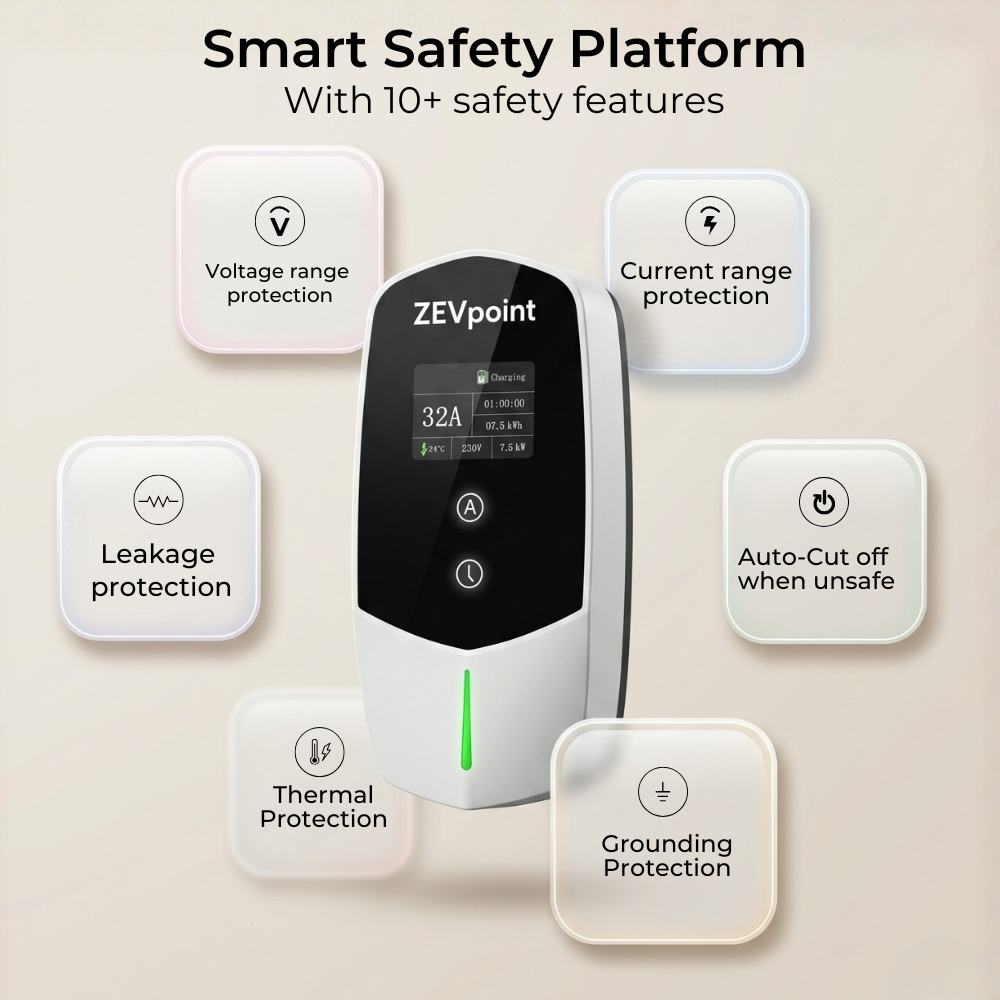

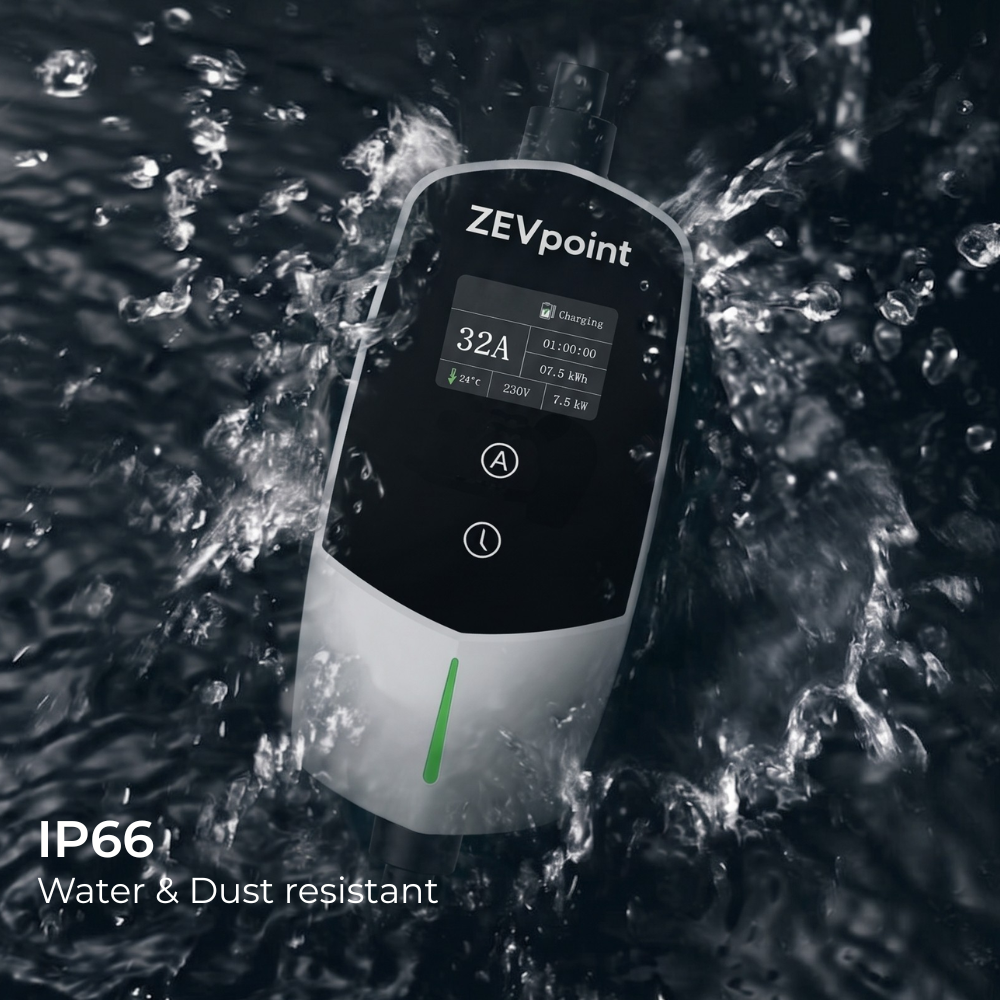

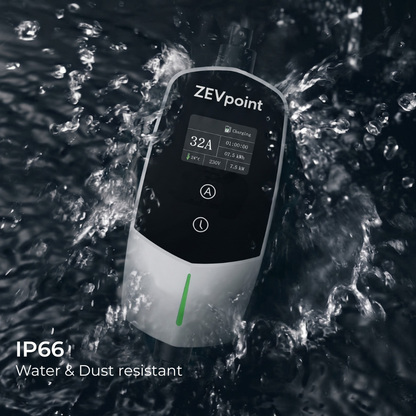

Safety Features: Auto cut-off, overload protection, over-voltage protection, over-temperature protection, leakage protection, earthing protection, water and dust resistance (IP66)
In the Box: AIO Max charger, 16A 3-pin CEE socket, 32A 3-pin CEE socket, 32A 5-pin three-phase CEE socket, carry bag, wall bracket and instruction manual
Warranty: 5 years on cables and enclosure, 2 years on all other components
Install Guide
-
Power Socket: A dedicated 16A or 32A single-phase socket, or a 32A three-phase socket, with adequate connected load for the plug you intend to use. All three CEE sockets are included in the packaging.
-
Wiring: Use a minimum of 6 square mm, 3-core copper cable for single-phase connections and 6 square mm, 5-core copper cable for three-phase connections. In hot environments, consider a 10 square mm copper cable.
-
Earthing: Ensure the power socket is properly earthed to prevent electrical hazards.
-
Circuit Breaker: Install a suitably rated MCB (40A double-pole for single phase, 40A four-pole for three phase) and a Surge Protection Device (SPD) to protect against power surges and electrical faults.
-
Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
