MCB Enclosure Box — 4 Way

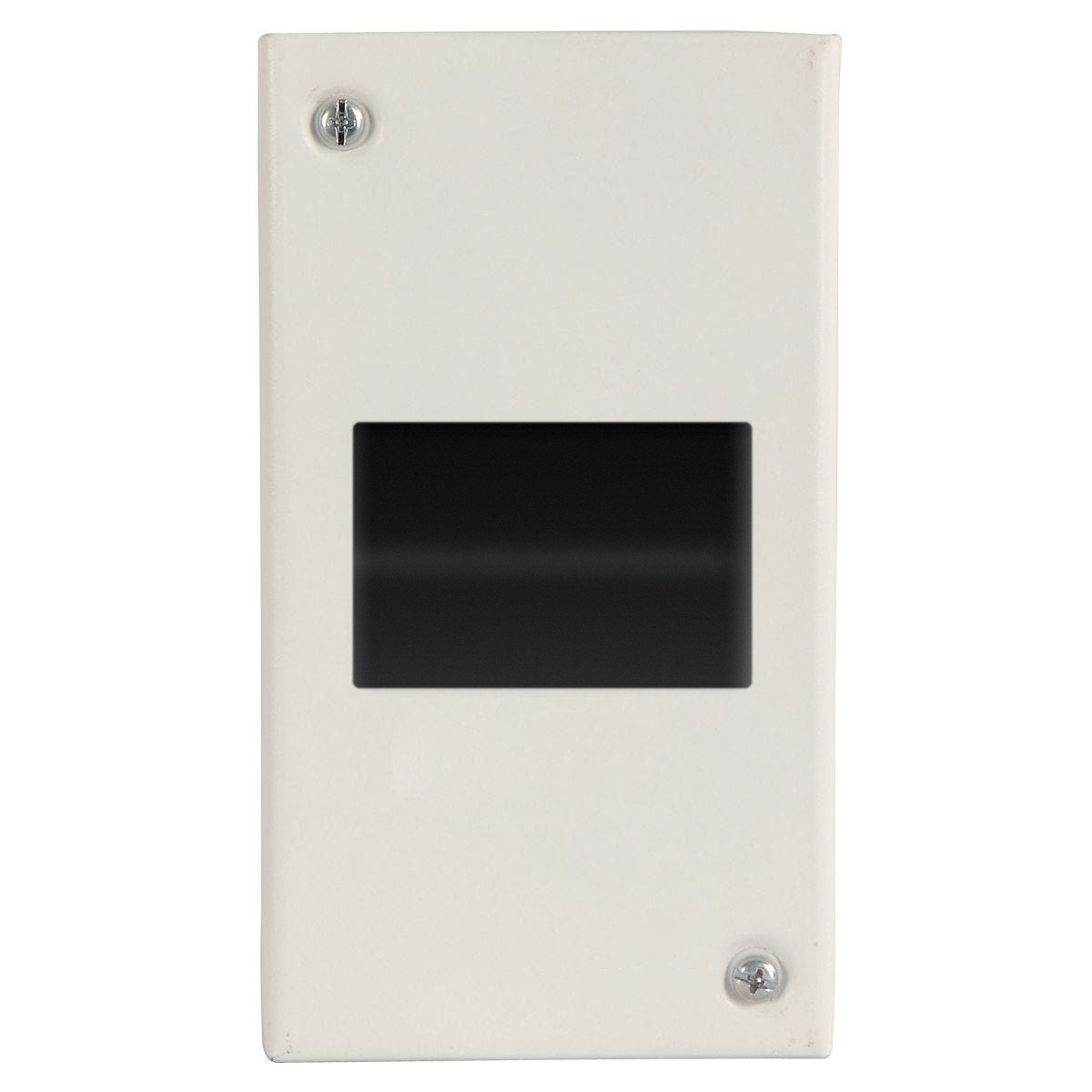

Single-door sheet-steel enclosure with DIN rail, for mounting up to 4 modules. Houses the breakers protecting an EV charger circuit, keeping them enclosed, dust-free and out of reach.

When you need this:

• Where the charger circuit needs its own small sub-board rather than a spare way
• Installations combining an isolator with one or more protective devices
• To leave room for a surge protection device alongside the charger MCB

Specifications:

• 4-way (four module) cut-out, single door
• Sheet steel, phosphatised and powder painted
• DIN rail fitted
• Surface mounting
• Conforms to IS 13032, IS 8623 and IEC/BS EN 60439-3

Enclosure only — the box is supplied with provision for MCBs, which are not included. Installed by Zevpoint technicians as part of your installation booking. Not a separately purchasable retail product.
